Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD8106 |

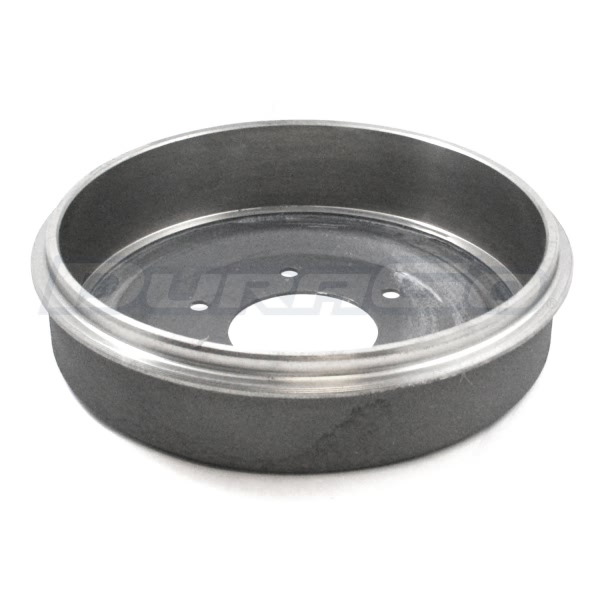

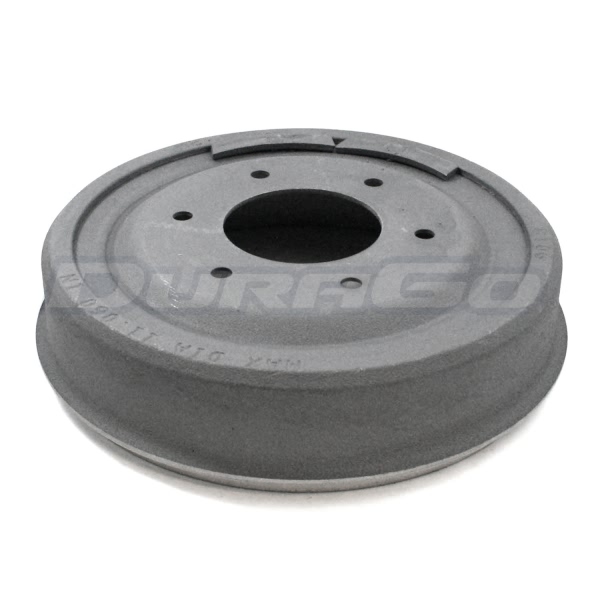

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 139.7mm (5.5") |
Bolt Hole Diameter | 11.5mm (0.45") |
Bolt Hole Quantity | 6 |
Brake Surface Width | 62.3mm (2.45") |
Center Hole Diameter | 90.6mm (3.57") |
Construction | Composite |
Drum Type | Floating |
Height | 75mm (2.95") |
Maximum Diameter | 280.92mm (11.06") |
Nominal Diameter | 279.4mm (11") |
Outside Diameter | 314.3mm (12.37") |
Type | Plain Cooling Fins |
UPC | 756632100501 |
Year Make Model | Trim | Engine |
---|---|---|
1969-1970 Chevrolet Blazer | All Trims | All Engines |
1960-1970 Chevrolet C10 Pickup | All Trims | All Engines |
1968-1970 Chevrolet C10 Suburban | All Trims | All Engines |
1967-1970 Chevrolet G20 Van | All Trims | All Engines |
1961-1970 Chevrolet K10 Pickup | All Trims | All Engines |
1968-1970 Chevrolet K10 Suburban | All Trims | All Engines |
1962-1967 Chevrolet P10 Series | All Trims | All Engines |
1968-1970 Chevrolet P10 Van | All Trims | All Engines |
1960-1963 Chevrolet Suburban | All Trims | All Engines |
1961-1965 GMC 1000 Series | All Trims | All Engines |
