Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD8101 |

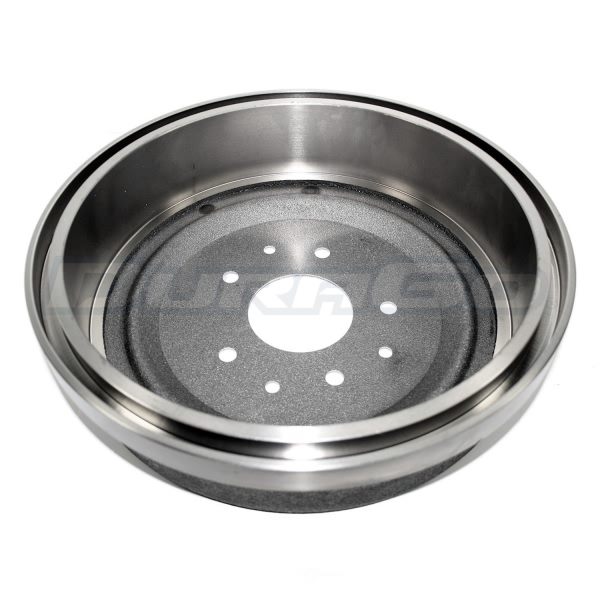

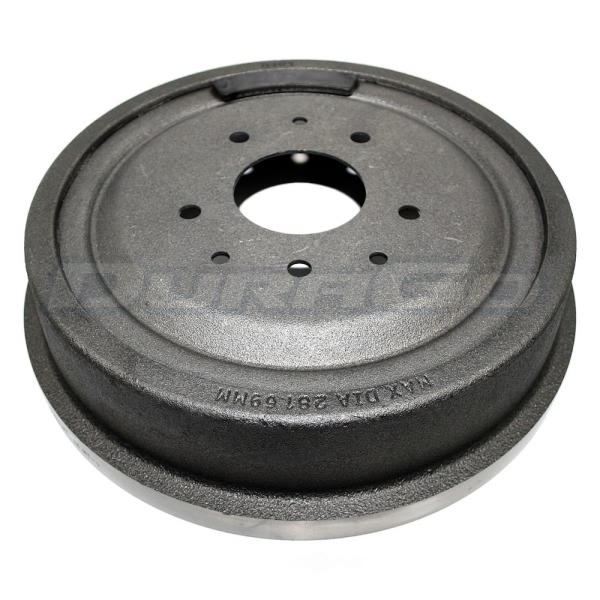

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 120.65mm (4.75") |
Bolt Hole Diameter | 11.4mm (0.45") |
Bolt Hole Quantity | 5 |
Brake Surface Width | 59.9mm (2.36") |
Center Hole Diameter | 71.4mm (2.81") |
Construction | Composite |
Drum Type | Floating |
Height | 79.5mm (3.13") |
Maximum Diameter | 280.92mm (11.06") |
Nominal Diameter | 279.4mm (11") |
Outside Diameter | 324.5mm (12.78") |
Type | Plain Cooling Fins |
UPC | 756632110548 |
Year Make Model | Trim | Engine |
---|---|---|
1951-1970 Chevrolet Bel Air | All Trims | All Engines |
1958-1970 Chevrolet Biscayne | All Trims | All Engines |
1969-1970 Chevrolet Brookwood | All Trims | All Engines |
1966-1970 Chevrolet Caprice | All Trims | All Engines |
1967 Chevrolet Chevelle | All Trims | All Engines |
1953-1966 Chevrolet Corvette | All Trims | All Engines |
1958 Chevrolet Del Ray | All Trims | All Engines |
1964-1966 Chevrolet El Camino | All Trims | All Engines |
1971 Chevrolet G10 Van | All Trims | All Engines |
1958-1970 Chevrolet Impala | All Trims | All Engines |
