Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD80120 |

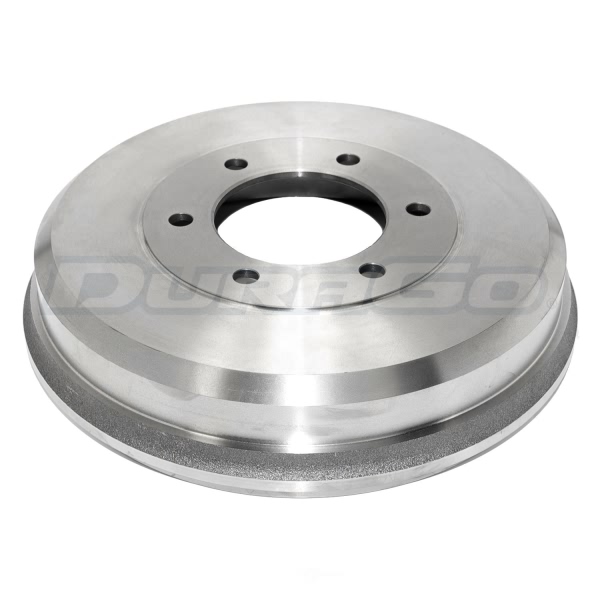

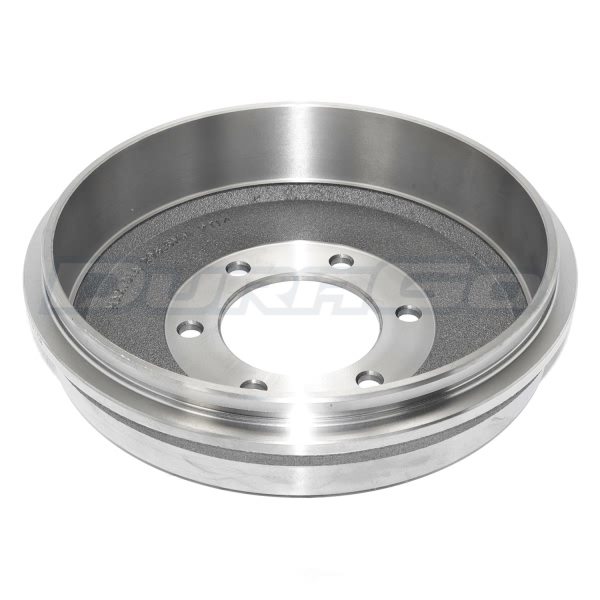

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 139.7mm (5.5") |
Bolt Hole Diameter | 14mm (0.55") |
Bolt Hole Quantity | 6 |
Brake Surface Width | 60.9mm (2.40") |
Center Hole Diameter | 101mm (3.98") |
Construction | Full Cast |
Drum Type | Floating |
Height | 80.3mm (3.16") |
Maximum Diameter | 296.5mm (11.67") |
Nominal Diameter | 295mm (11.61") |
Outside Diameter | 335mm (13.19") |
Type | Plain Cooling Fins |
UPC | 756632132069 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2012 Chevrolet Colorado | All Trims | All Engines |
2004-2012 GMC Canyon | All Trims | All Engines |
2006 Isuzu i-280 | All Trims | All Engines |
2007-2008 Isuzu i-290 | All Trims | All Engines |
2006 Isuzu i-350 | All Trims | All Engines |
2007-2008 Isuzu i-370 | All Trims | All Engines |
