Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD80109 |

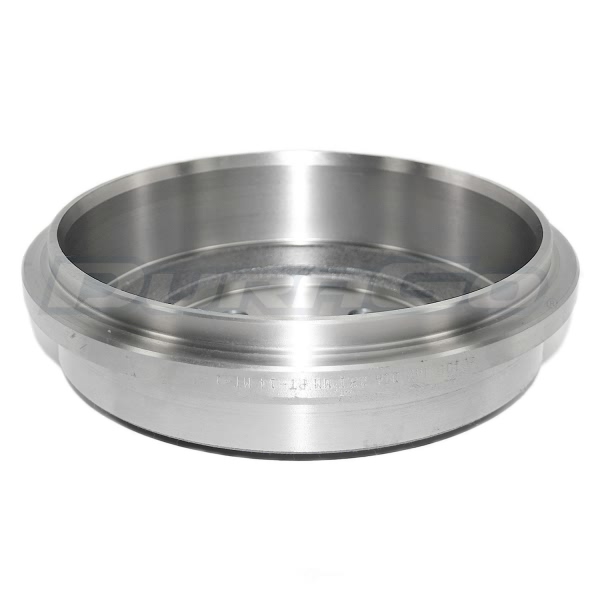

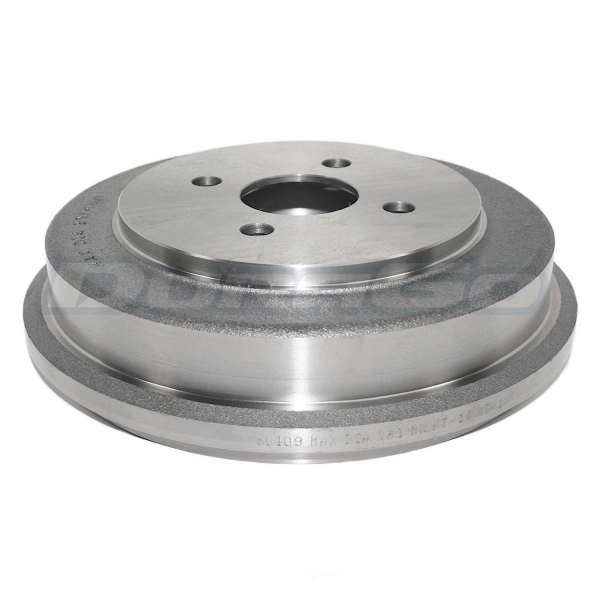

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 100mm (3.94") |
Bolt Hole Diameter | 14.4mm (0.57") |
Bolt Hole Quantity | 4 |
Brake Surface Width | 54.5mm (2.15") |
Center Hole Diameter | 57mm (2.24") |
Construction | Full Cast |
Drum Type | Floating |
Height | 73.5mm (2.89") |
Maximum Diameter | 230.89mm (9.09") |
Nominal Diameter | 230mm (9.06") |
Outside Diameter | 271mm (10.67") |
Type | Plain Cooling Fins |
UPC | 756632131611 |
Year Make Model | Trim | Engine |
---|---|---|
2005-2008 Chevrolet Cobalt | All Trims | All Engines |
2005-2006 Pontiac G4 | All Trims | All Engines |
2007-2008 Pontiac G5 | Base | All Engines |
2007-2008 Pontiac G5 | Basico | All Engines |
2007-2008 Pontiac G5 | LS | All Engines |
2007-2008 Pontiac G5 | SE | All Engines |
2008 Pontiac G5 | All Trims | 4 Cyl 2.2L |
2005-2006 Pontiac Pursuit | All Trims | All Engines |
2003 Saturn Ion | All Trims | All Engines |
2004-2005 Saturn Ion | 1 | All Engines |
