Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD80096 |

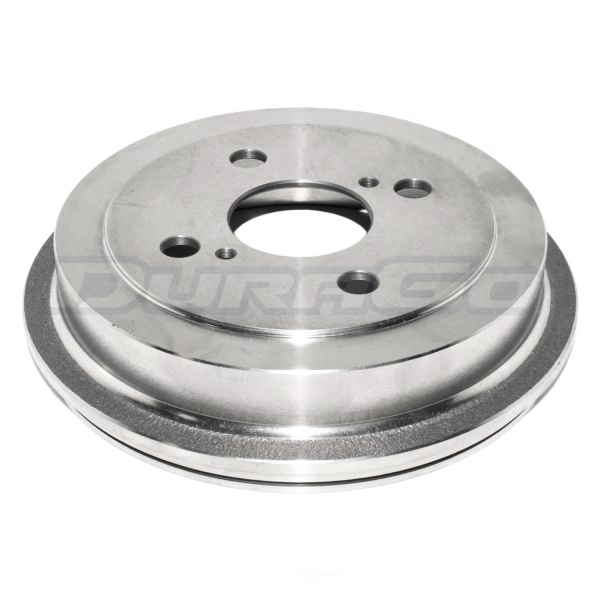

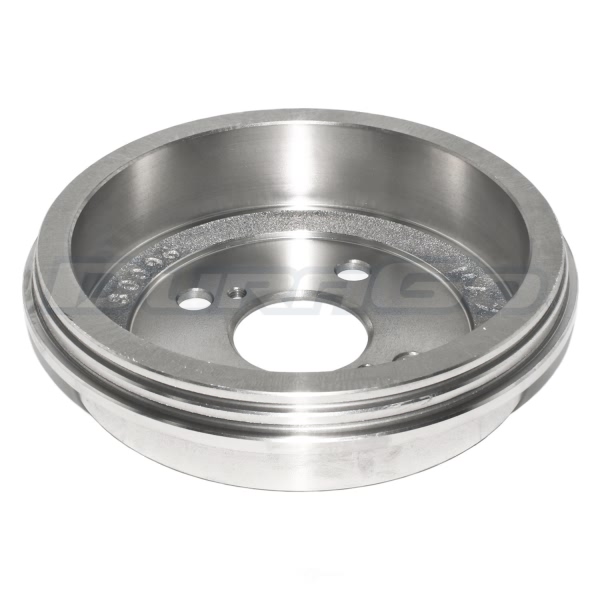

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 100mm (3.94") |
Bolt Hole Diameter | 14.8mm (0.58") |
Bolt Hole Quantity | 4 |
Brake Surface Width | 37.5mm (1.48") |
Center Hole Diameter | 55mm (2.17") |
Construction | Full Cast |
Drum Type | Floating |
Height | 48.5mm (1.91") |
Maximum Diameter | 181mm (7.126") |
Nominal Diameter | 180mm (7.09") |
Outside Diameter | 219.5mm (8.64") |
Type | Plain Cooling Fins |
UPC | 756632117837 |
Year Make Model | Trim | Engine |
---|---|---|
2000-2001 Toyota Echo | All Trims | All Engines |
