Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD80093 |

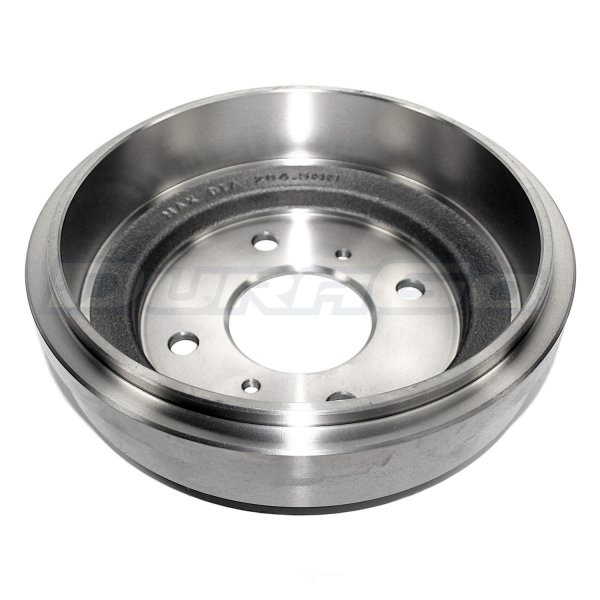

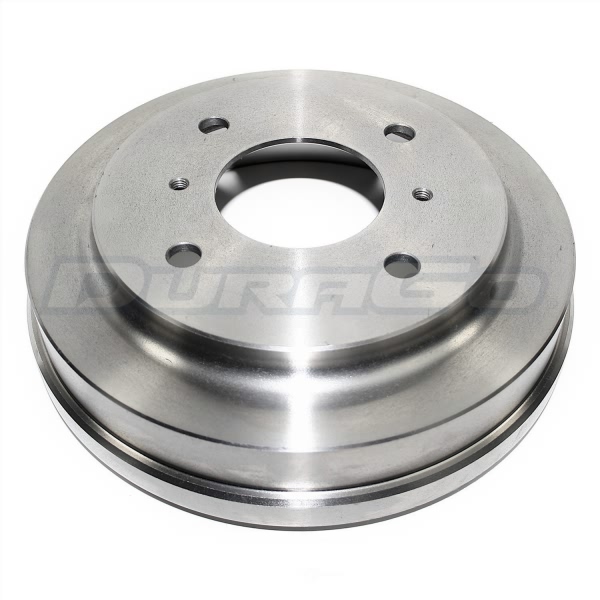

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 114.3mm (4.5") |
Bolt Hole Diameter | 12.7mm (0.5") |
Bolt Hole Quantity | 4 |
Brake Surface Width | 42.4mm (1.67") |
Center Hole Diameter | 68.1mm (2.68") |
Construction | Full Cast |
Drum Type | Floating |
Height | 66.6mm (2.62") |
Maximum Diameter | 204.5mm (8.05") |
Nominal Diameter | 203.2mm (8") |
Outside Diameter | 236.2mm (9.30") |
Type | Plain Cooling Fins |
UPC | 756632126150 |
Year Make Model | Trim | Engine |
---|---|---|
2000-2003 Nissan Sentra | All Trims | All Engines |
2004-2006 Nissan Sentra | All Trims | 4 Cyl 1.8L |
