Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD80020 |

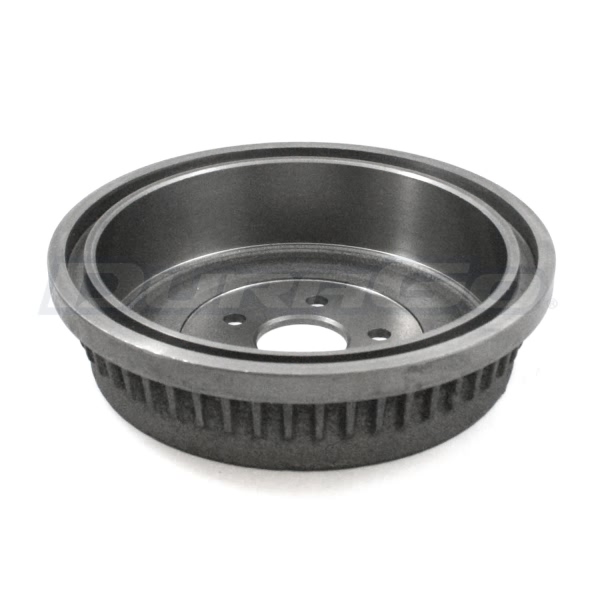

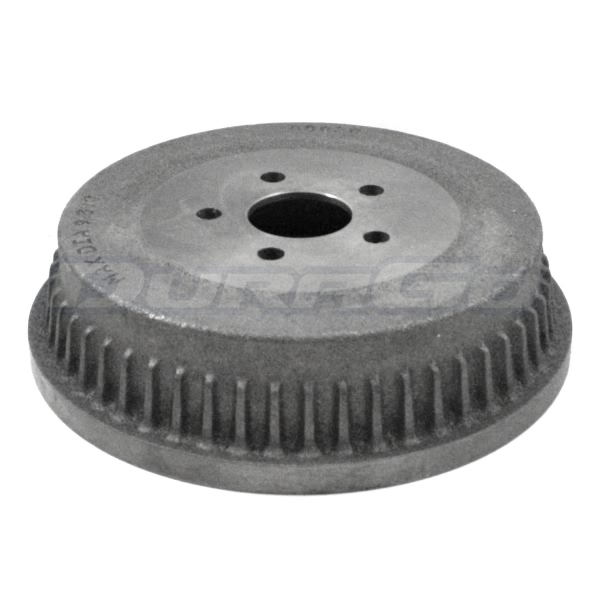

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 100mm (3.94") |
Bolt Hole Diameter | 14.5mm (0.57") |
Bolt Hole Quantity | 5 |
Brake Surface Width | 67mm (2.64") |
Center Hole Diameter | 57.5mm (2.26") |
Construction | Full Cast |
Drum Type | Floating |
Height | 77.3mm (3.04") |
Maximum Diameter | 251.2mm (9.89") |
Nominal Diameter | 250mm (9.84") |
Outside Diameter | 308mm (12.13") |
Type | Plain Cooling Fins |
UPC | 756632110630 |
Year Make Model | Trim | Engine |
---|---|---|
2000 Chrysler Grand Voyager | All Trims | All Engines |
1996-2000 Chrysler Town & Country | All Trims | All Engines |
2000 Chrysler Voyager | All Trims | All Engines |
1996-2000 Dodge Caravan | All Trims | All Engines |
1996-2000 Dodge Grand Caravan | All Trims | All Engines |
1996-2000 Plymouth Grand Voyager | All Trims | All Engines |
1996-2000 Plymouth Voyager | All Trims | All Engines |
