Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD80002 |

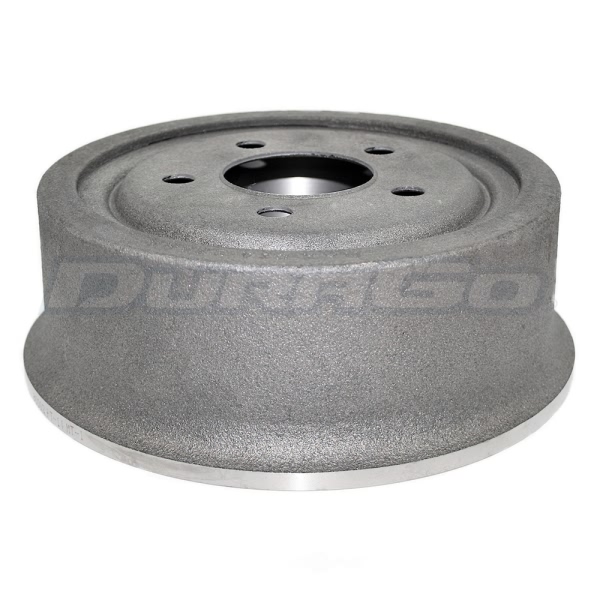

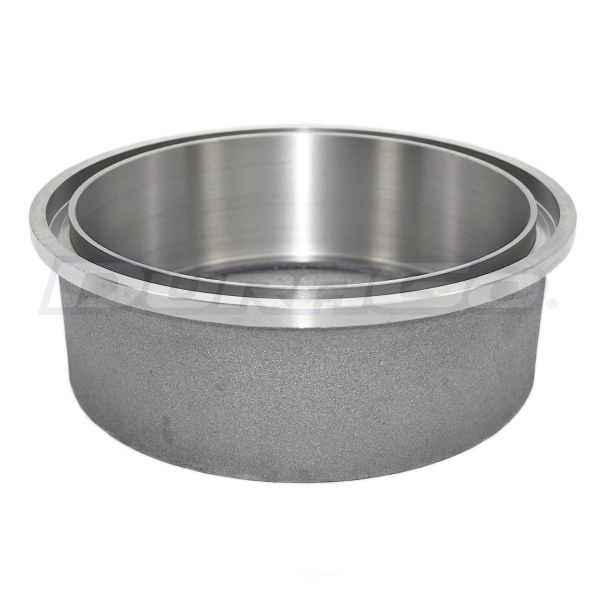

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 114.3mm (4.5") |
Bolt Hole Diameter | 15.7mm (0.62") |
Bolt Hole Quantity | 5 |
Brake Surface Width | 78.2mm (3.08") |
Center Hole Diameter | 72mm (2.83") |
Construction | Composite |
Drum Type | Floating |
Height | 91mm (3.58") |
Maximum Diameter | 230mm (9.06") |
Nominal Diameter | 228.6mm (9") |
Outside Diameter | 274mm (10.79") |
Type | Plain Cooling Fins |
UPC | 756632101157 |
Year Make Model | Trim | Engine |
---|---|---|
1990-2001 Jeep Cherokee | All Trims | All Engines |
1990-1992 Jeep Comanche | All Trims | All Engines |
1997-2006 Jeep TJ | All Trims | All Engines |
1990 Jeep Wagoneer | All Trims | All Engines |
1990-1995 Jeep Wrangler | All Trims | All Engines |
1997-2006 Jeep Wrangler | All Trims | All Engines |
