Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD3829 |

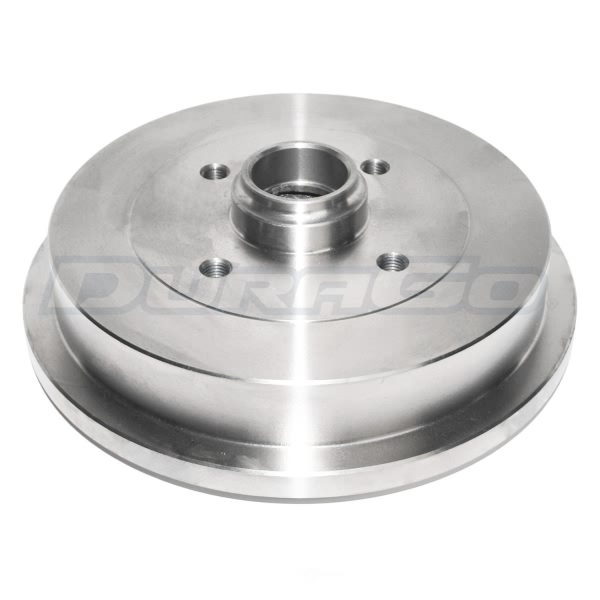

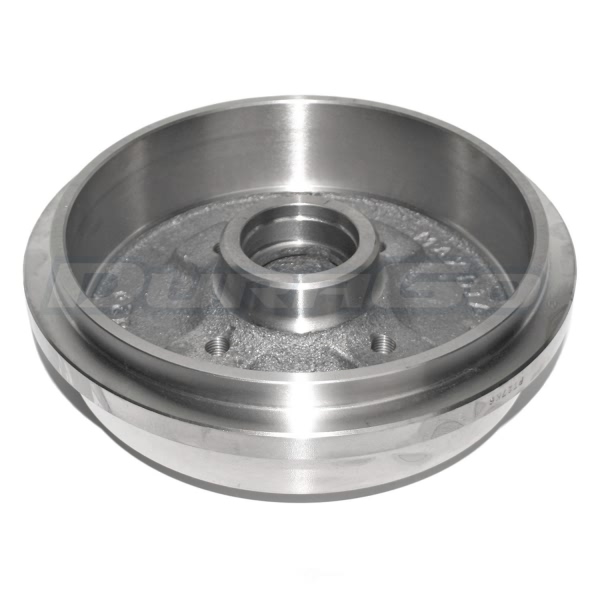

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 100mm (3.94") |
Bolt Hole Diameter | M12 x 1.5mm |
Bolt Hole Quantity | 4 |
Brake Surface Width | 38.5mm (1.52") |
Center Hole Diameter | 56.8mm (2.24") |
Construction | Full Cast |
Drum Type | Drum, Hub and Bearing |
Height | 75mm (2.95") |
Maximum Diameter | 181mm (7.126") |
Nominal Diameter | 180mm (7.09") |
Outside Diameter | 211.5mm (8.33") |
Type | Plain Cooling Fins |
UPC | 756632100112 |
Year Make Model | Trim | Engine |
---|---|---|
1995-1999 Volkswagen Cabrio | All Trims | All Engines |
1995-1999 Volkswagen Derby | All Trims | All Engines |
2009-2013 Volkswagen Gol | All Trims | All Engines |
1989 Volkswagen Golf | Base | All Engines |
1989 Volkswagen Golf | GL | All Engines |
1990-1999 Volkswagen Golf | All Trims | All Engines |
1990-1993 Volkswagen Jetta | All Trims | All Engines |
1994-1996 Volkswagen Jetta | All Trims | 4 Cyl 1.8L |
1994-1996 Volkswagen Jetta | All Trims | 4 Cyl 2.0L |
1996 Volkswagen Jetta | All Trims | 4 Cyl 1.9L |
