Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD3812 |

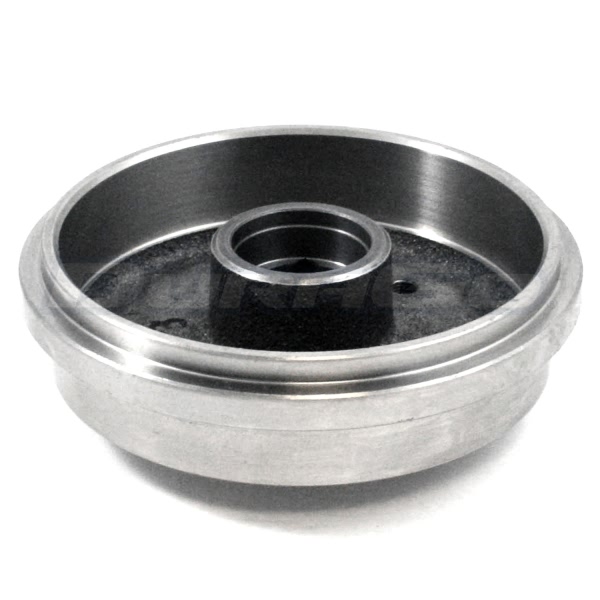

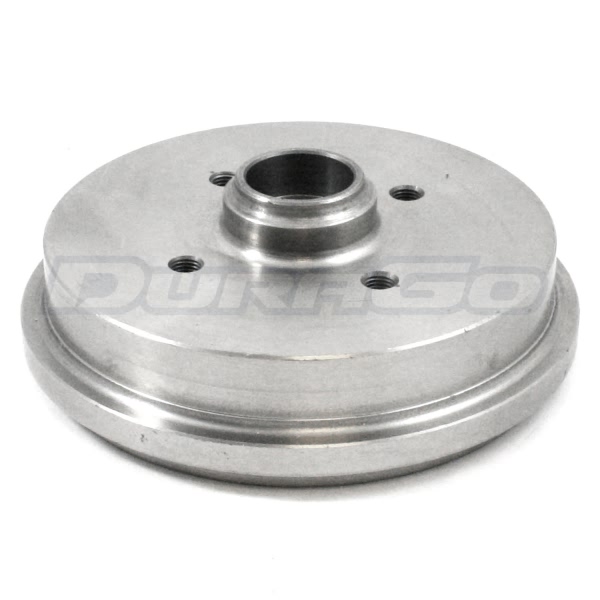

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 100mm (3.94") |
Bolt Hole Diameter | M12 x 1.5mm |
Bolt Hole Quantity | 4 |
Brake Surface Width | 38.5mm (1.52") |
Center Hole Diameter | 56.8mm (2.24") |
Construction | Full Cast |
Drum Type | Drum, Hub and Bearing |
Height | 52.5mm (2.07") |
Maximum Diameter | 181mm (7.126") |
Nominal Diameter | 180mm (7.09") |
Outside Diameter | 211.5mm (8.33") |
Type | Plain Cooling Fins |
UPC | 756632109634 |
Year Make Model | Trim | Engine |
---|---|---|
1985-1993 Volkswagen Cabriolet | All Trims | All Engines |
1987-1993 Volkswagen Fox | All Trims | All Engines |
1985-1988 Volkswagen Golf | All Trims | All Engines |
1989 Volkswagen Golf | Base | All Engines |
1989 Volkswagen Golf | GL | All Engines |
1980-1992 Volkswagen Jetta | All Trims | All Engines |
1975-1984 Volkswagen Rabbit | All Trims | All Engines |
1980-1984 Volkswagen Rabbit Convertible | All Trims | All Engines |
1975-1977 Volkswagen Scirocco | All Trims | All Engines |
1979-1989 Volkswagen Scirocco | All Trims | All Engines |
