Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD3593 |

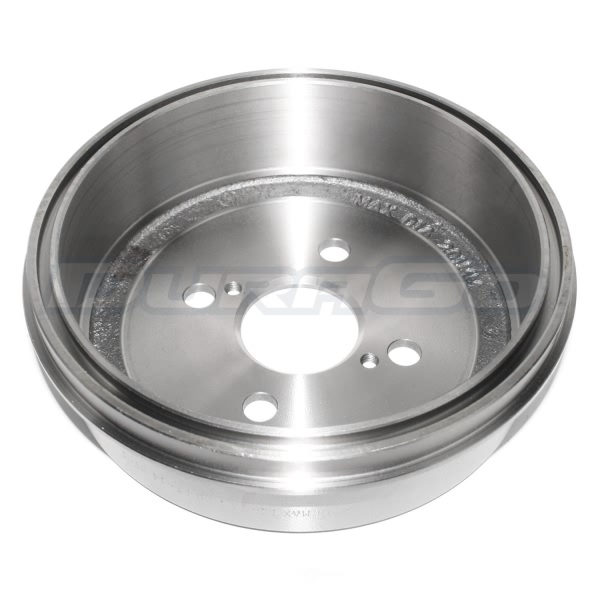

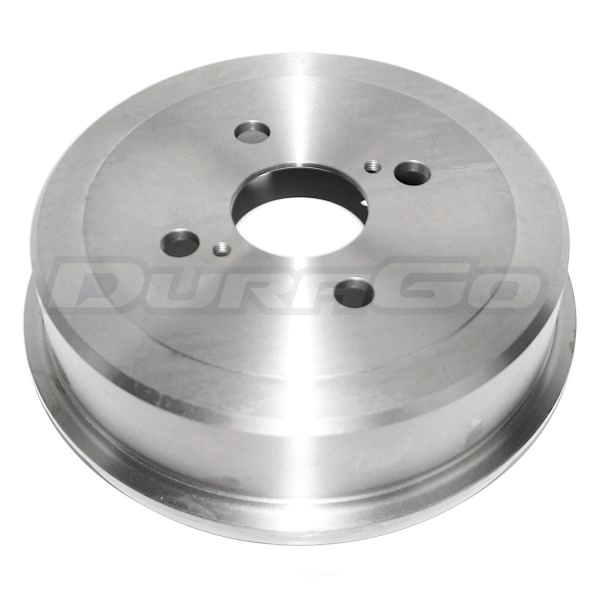

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 100mm (3.94") |
Bolt Hole Diameter | 14.7mm (0.58") |
Bolt Hole Quantity | 4 |
Brake Surface Width | 55mm (2.17") |
Center Hole Diameter | 54mm (2.13") |
Construction | Full Cast |
Drum Type | Floating |
Height | 67mm (2.64") |
Maximum Diameter | 201mm (7.913") |
Nominal Diameter | 200mm (7.87") |
Outside Diameter | 235mm (9.25") |
Type | Plain Cooling Fins |
UPC | 756632100488 |
Year Make Model | Trim | Engine |
---|---|---|
1989-1992 Geo Prizm | All Trims | All Engines |
1986-1987 Toyota Celica | ST | All Engines |
1986-1989 Toyota Celica | GT | All Engines |
1990-1991 Toyota Celica | ST | All Engines |
1988 Toyota Corolla | All Trims | All Engines |
1988-1992 Toyota Corolla | DLX | All Engines |
1988-1992 Toyota Corolla | SR5 | All Engines |
1989-1990 Toyota Corolla | Base | All Engines |
1989-1990 Toyota Corolla | LE | All Engines |
1991-1992 Toyota Corolla | All Trims | All Engines |
