Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD3544 |

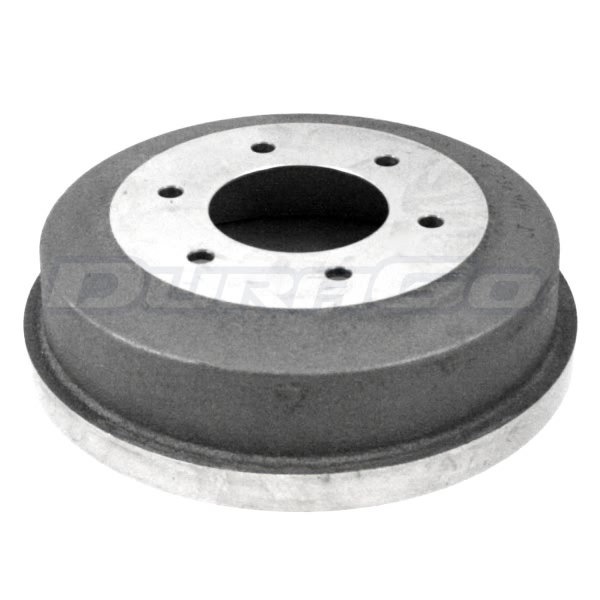

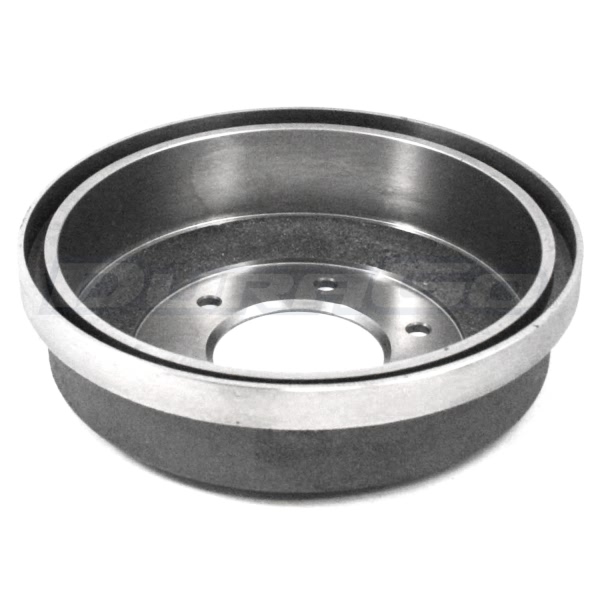

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 139.7mm (5.5") |
Bolt Hole Diameter | 12.5mm (0.49") |
Bolt Hole Quantity | 6 |
Brake Surface Width | 57.7mm (2.27") |
Center Hole Diameter | 93.5mm (3.68") |
Construction | Full Cast |
Drum Type | Floating |
Height | 83.3mm (3.28") |
Maximum Diameter | 256mm (10.08") |
Nominal Diameter | 254mm (10") |
Outside Diameter | 303mm (11.93") |
Type | Plain Cooling Fins |
UPC | 756632108996 |
Year Make Model | Trim | Engine |
---|---|---|
1987-1989 Dodge Raider | All Trims | All Engines |
1983-1993 Dodge Ram 50 | All Trims | All Engines |
1983-1996 Mitsubishi Mighty Max | All Trims | All Engines |
1983-1991 Mitsubishi Montero | All Trims | All Engines |
