Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD3536 |

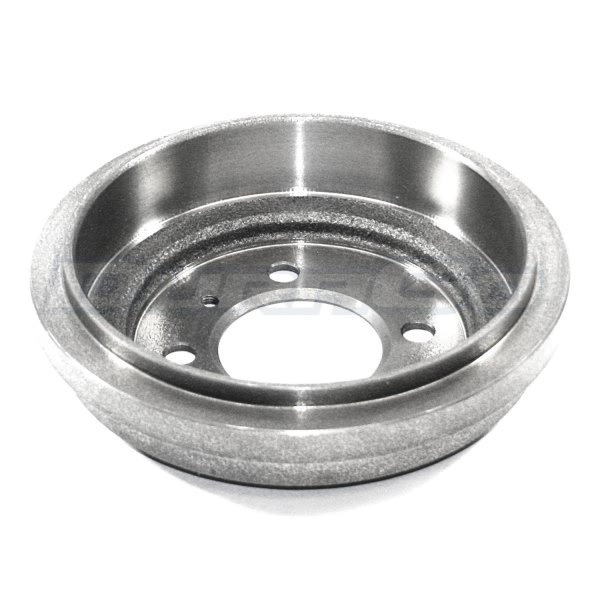

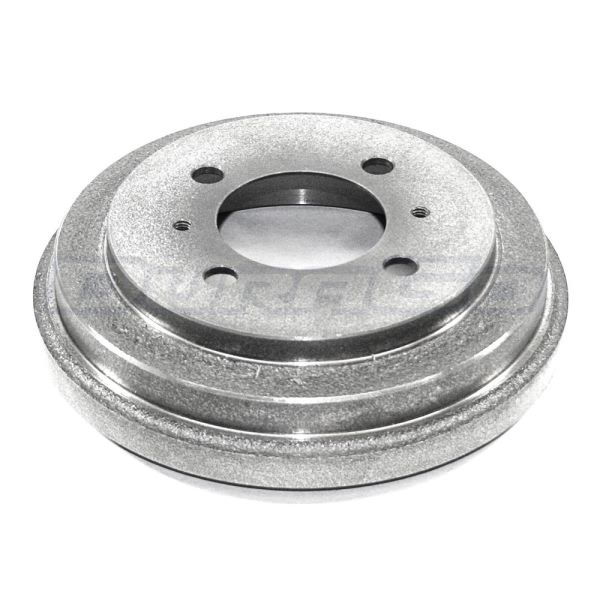

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 100mm (3.94") |
Bolt Hole Diameter | 12.6mm (0.50") |
Bolt Hole Quantity | 4 |
Brake Surface Width | 37.5mm (1.48") |
Center Hole Diameter | 68.1mm (2.68") |
Construction | Full Cast |
Drum Type | Floating |
Height | 57.9mm (2.28") |
Maximum Diameter | 181mm (7.126") |
Nominal Diameter | 180mm (7.09") |
Outside Diameter | 220mm (8.66") |
Type | Plain Cooling Fins |
UPC | 756632108521 |
Year Make Model | Trim | Engine |
---|---|---|
1995-1998 Nissan 200SX | All Trims | All Engines |
1991-1993 Nissan NX | All Trims | All Engines |
1991-1994 Nissan Sentra | All Trims | 4 Cyl 1.6L |
1995-1999 Nissan Sentra | All Trims | All Engines |
1993-2017 Nissan Tsuru | All Trims | All Engines |
