Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD3521 |

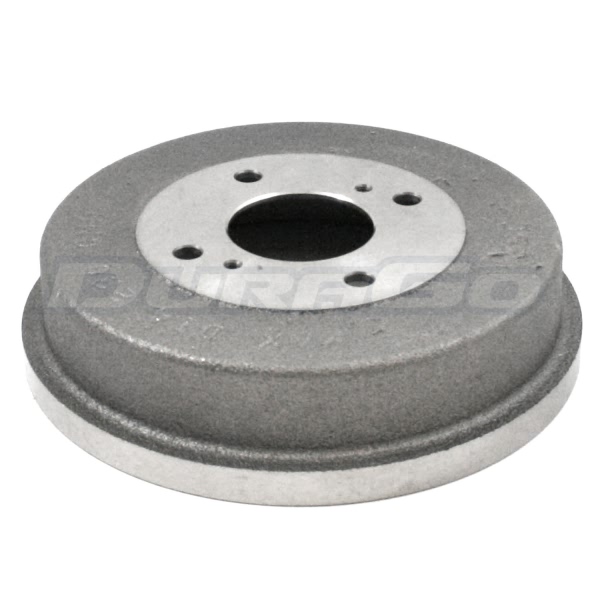

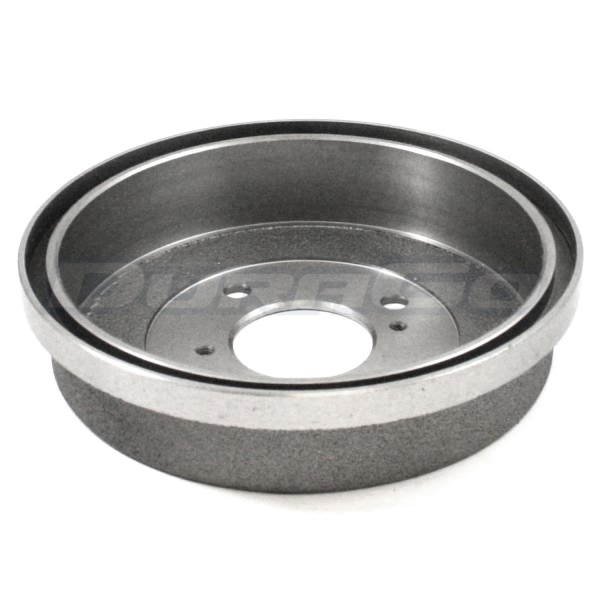

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 114.3mm (4.5") |
Bolt Hole Diameter | 13.2mm (0.52") |
Bolt Hole Quantity | 4 |
Brake Surface Width | 51.5mm (2.03") |
Center Hole Diameter | 68mm (2.68") |
Construction | Full Cast |
Drum Type | Floating |
Height | 63.3mm (2.49") |
Maximum Diameter | 230mm (9.06") |
Nominal Diameter | 228.4mm (8.99") |
Outside Diameter | 266mm (10.47") |
Type | Plain Cooling Fins |
UPC | 756632105193 |
Year Make Model | Trim | Engine |
---|---|---|
1977-1984 Nissan 200SX | All Trims | All Engines |
1978-1981 Nissan 510 | All Trims | All Engines |
1973-1976 Nissan 610 | All Trims | All Engines |
1974-1977 Nissan 710 | All Trims | All Engines |
1977-1980 Nissan 810 | All Trims | All Engines |
1993-2001 Nissan Altima | All Trims | All Engines |
1990-1991 Nissan Axxess | All Trims | All Engines |
1981-1984 Nissan Maxima | All Trims | All Engines |
1987-1988 Nissan Stanza | All Trims | All Engines |
1990-1992 Nissan Stanza | All Trims | All Engines |
