Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD35094 |

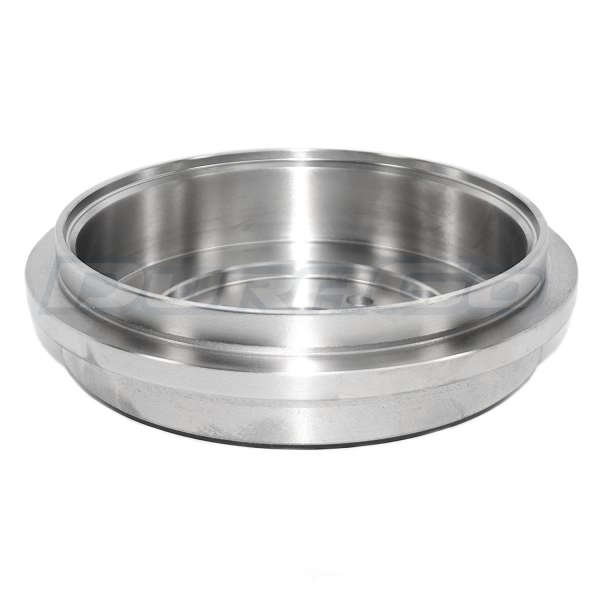

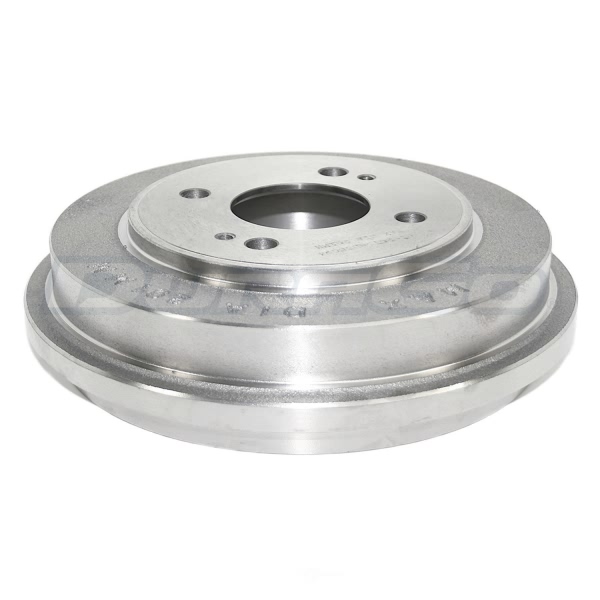

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 100mm (3.94") |
Bolt Hole Diameter | 13mm (0.51") |
Bolt Hole Quantity | 4 |
Brake Surface Width | 45.7mm (1.80") |
Center Hole Diameter | 61.2mm (2.41") |
Construction | Full Cast |
Drum Type | Floating |
Height | 63.7mm (2.51") |
Maximum Diameter | 201mm (7.913") |
Nominal Diameter | 200mm (7.87") |
Outside Diameter | 246mm (9.69") |
Type | Plain Cooling Fins |
UPC | 756632122534 |
Year Make Model | Trim | Engine |
---|---|---|
2001-2002 Honda Civic | All Trims | All Engines |
2003 Honda Civic | Si | All Engines |
2003-2005 Honda Civic | DX | All Engines |
2003-2005 Honda Civic | EX | All Engines |
2003-2005 Honda Civic | GX | All Engines |
2003-2005 Honda Civic | HX | All Engines |
2003-2005 Honda Civic | LX | All Engines |
2004-2005 Honda Civic | Value Package | All Engines |
2009-2012 Honda Fit | All Trims | All Engines |
2013 Honda Fit | Base | All Engines |
