Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD35092 |

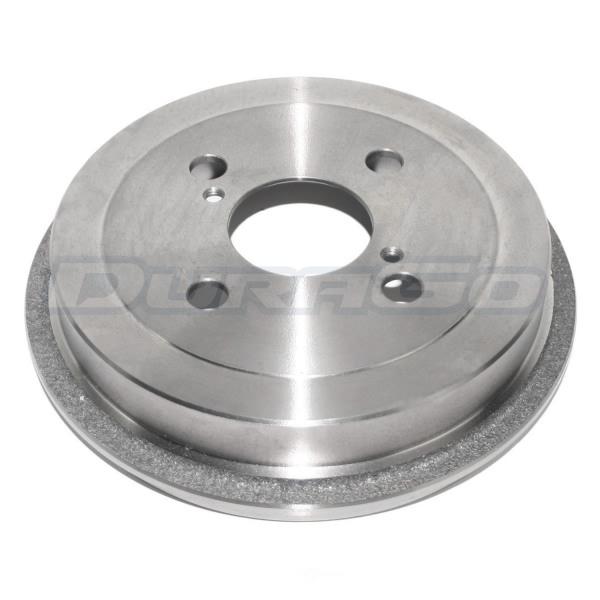

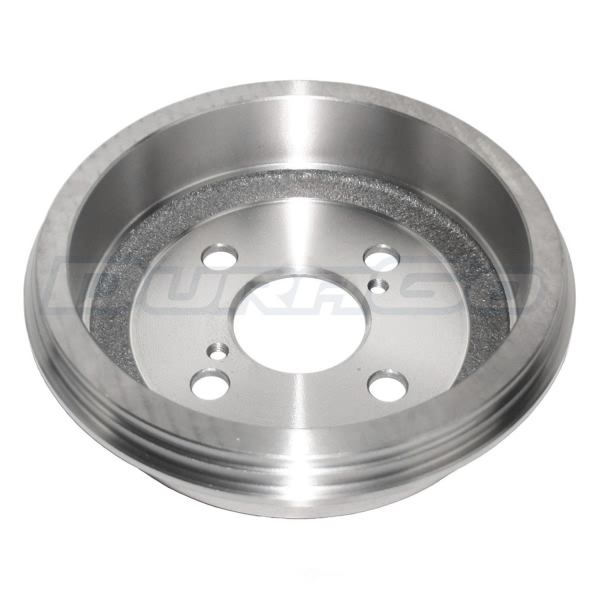

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 100mm (3.94") |
Bolt Hole Diameter | 14.7mm (0.58") |
Bolt Hole Quantity | 4 |
Brake Surface Width | 38mm (1.50") |
Center Hole Diameter | 55.1mm (2.17") |
Construction | Full Cast |
Drum Type | Floating |
Height | 48.3mm (1.90") |
Maximum Diameter | 181mm (7.126") |
Nominal Diameter | 179mm (7.05") |
Outside Diameter | 219.8mm (8.65") |
Type | Plain Cooling Fins |
UPC | 756632131567 |
Year Make Model | Trim | Engine |
---|---|---|
2002-2005 Toyota Echo | All Trims | All Engines |
