Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD3509 |

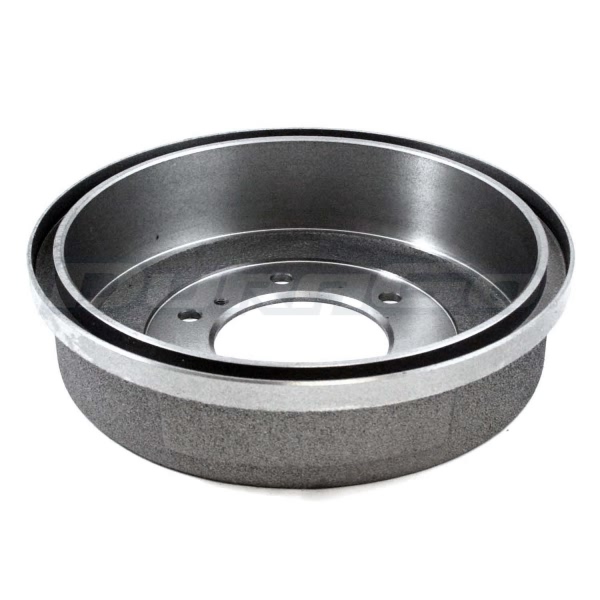

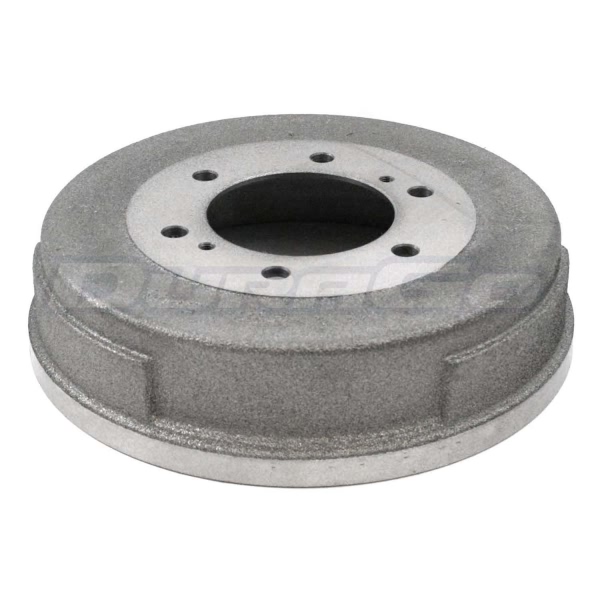

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 139.7mm (5.5") |
Bolt Hole Diameter | 12.7mm (0.5") |
Bolt Hole Quantity | 6 |
Brake Surface Width | 64.2mm (2.53") |
Center Hole Diameter | 100.5mm (3.96") |
Construction | Full Cast |
Drum Type | Floating |
Height | 74.1mm (2.92") |
Maximum Diameter | 261.5mm (10.30") |
Nominal Diameter | 260.1mm (10.24") |
Outside Diameter | 300mm (11.81") |
Type | Plain Cooling Fins |
UPC | 756632100419 |
Year Make Model | Trim | Engine |
---|---|---|
1986 Nissan 720 | All Trims | 4 Cyl 2.5L |
1986-1991 Nissan D21 | All Trims | 4 Cyl 2.4L |
1986-1991 Nissan D21 | All Trims | 6 Cyl 3.0L |
1992-1994 Nissan D21 | All Trims | All Engines |
1998 Nissan Frontier | All Trims | All Engines |
1999-2004 Nissan Frontier | All Trims | 4 Cyl 2.4L |
2009-2015 Nissan NP300 | All Trims | All Engines |
2016-2017 Nissan NP300 Frontier | All Trims | All Engines |
1989-1995 Nissan Pathfinder | All Trims | All Engines |
1995-1997 Nissan Pickup | All Trims | All Engines |
