Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD35069 |

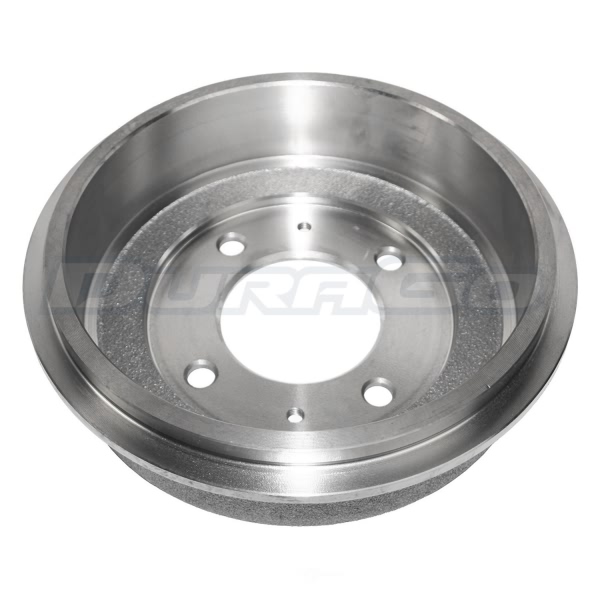

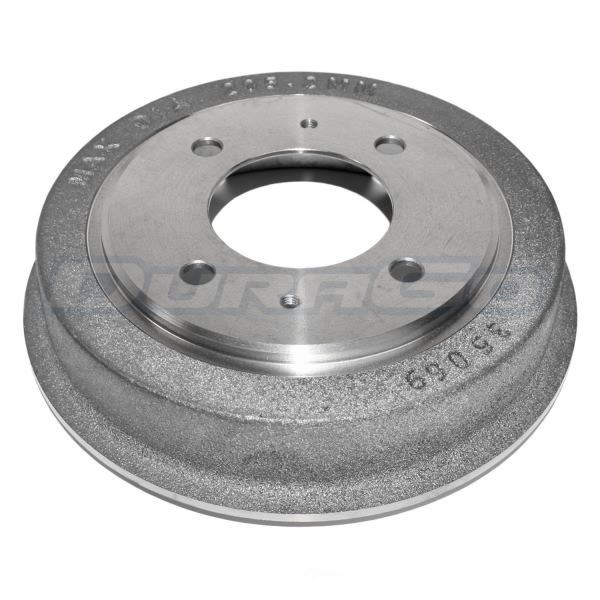

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 114.3mm (4.5") |
Bolt Hole Diameter | 12.8mm (0.50") |
Bolt Hole Quantity | 4 |
Brake Surface Width | 44mm (1.73") |
Center Hole Diameter | 76mm (2.99") |
Construction | Full Cast |
Drum Type | Floating |
Height | 61mm (2.40") |
Maximum Diameter | 205.2mm (8.08") |
Nominal Diameter | 203.2mm (8") |
Outside Diameter | 243.5mm (9.59") |
Type | Plain Cooling Fins |
UPC | 756632126082 |
Year Make Model | Trim | Engine |
---|---|---|
1997-2001 Hyundai Elantra | All Trims | All Engines |
1997-1999 Hyundai Tiburon | All Trims | All Engines |
