Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD35023 |

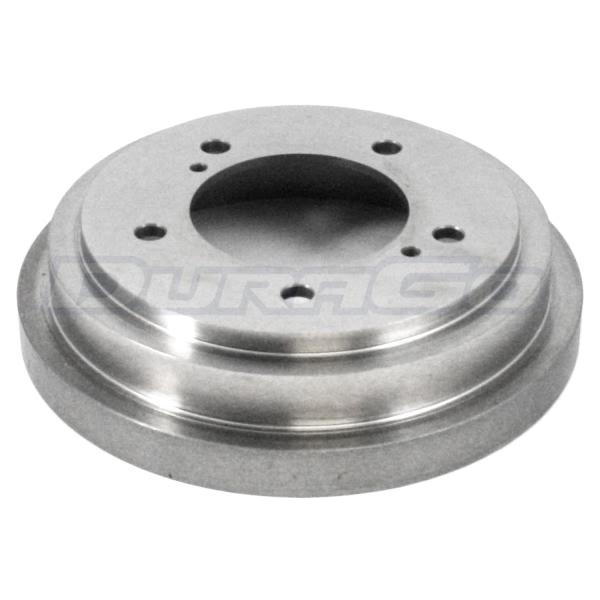

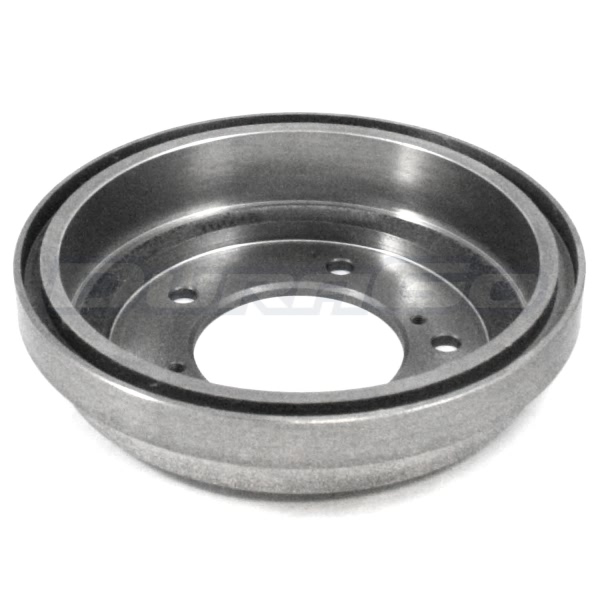

Part Description | Rear Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 139.7mm (5.5") |
Bolt Hole Diameter | 12.8mm (0.50") |
Bolt Hole Quantity | 5 |
Brake Surface Width | 40.2mm (1.58") |
Center Hole Diameter | 100mm (3.94") |
Construction | Full Cast |
Drum Type | Floating |
Height | 61mm (2.40") |
Maximum Diameter | 222mm (8.74") |
Nominal Diameter | 220mm (8.66") |
Outside Diameter | 261.5mm (10.30") |
Type | Plain Cooling Fins |
UPC | 756632111323 |
Year Make Model | Trim | Engine |
---|---|---|
1998 Chevrolet Tracker | All Trims | All Engines |
1996-1997 Geo Tracker | All Trims | All Engines |
1996-1998 Suzuki Sidekick | All Trims | All Engines |
1996-1998 Suzuki X-90 | All Trims | All Engines |
