Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD8146 |

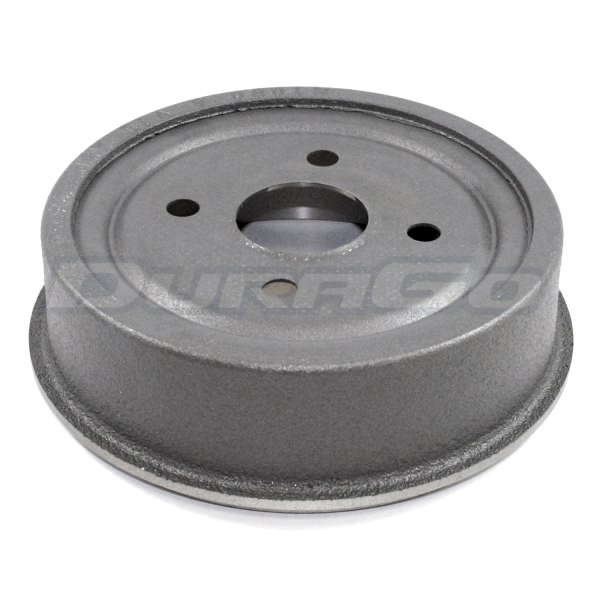

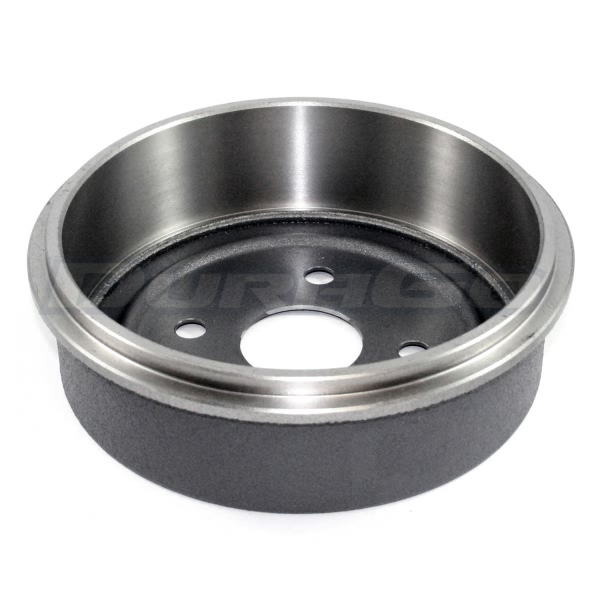

Part Description | Front Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 114.3mm (4.5") |
Bolt Hole Diameter | 15.7mm (0.62") |
Bolt Hole Quantity | 4 |
Brake Surface Width | 64.8mm (2.55") |
Center Hole Diameter | 62mm (2.44") |
Construction | Composite |
Drum Type | Floating |
Height | 79mm (3.11") |
Maximum Diameter | 230.89mm (9.09") |
Nominal Diameter | 228.6mm (9") |
Outside Diameter | 264mm (10.39") |
Type | Plain Cooling Fins |
UPC | 756632109320 |
Year Make Model | Trim | Engine |
---|---|---|
1960-1965 Ford Falcon | All Trims | All Engines |
1961-1965 Ford Falcon Sedan Delivery | All Trims | All Engines |
1964-1973 Ford Mustang | All Trims | All Engines |
1960-1964 Ford Ranchero | All Trims | 6 Cyl 2.4L |
1961-1965 Ford Ranchero | All Trims | 6 Cyl 2.8L |
1964-1965 Ford Ranchero | All Trims | 6 Cyl 3.3L |
1963-1964 Ford Sprint | All Trims | All Engines |
1964-1965 Mercury Caliente | All Trims | 6 Cyl 3.3L |
1960-1962 Mercury Comet | All Trims | All Engines |
1964 Mercury Cyclone | All Trims | 6 Cyl 3.3L |
