Vehicle Specific
Check if it fits by entering your vehicle infoBrand | DuraGo |
Part Number | BD8124 |

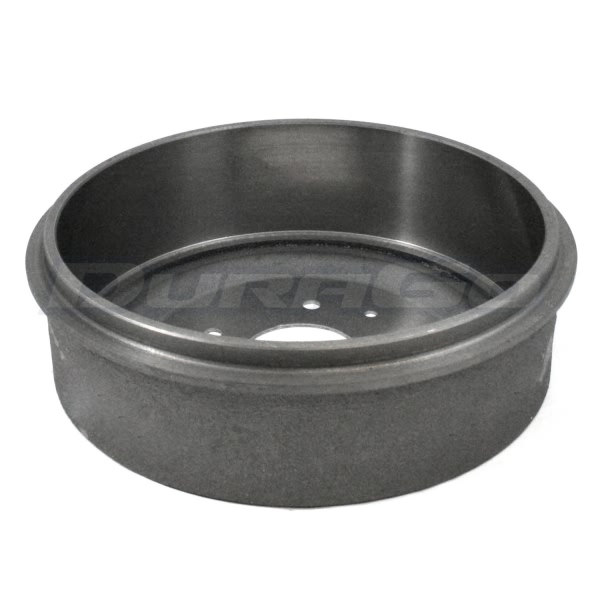

Part Description | Front Brake Drum |
Abs Sensor Ring Includes | No |
Bolt Circle Diameter | 120.65mm (4.75") |
Bolt Hole Diameter | 11.4mm (0.45") |
Bolt Hole Quantity | 5 |
Brake Surface Width | 77.4mm (3.05") |
Center Hole Diameter | 71.6mm (2.82") |
Construction | Composite |
Drum Type | Floating |
Height | 101mm (3.98") |
Maximum Diameter | 280.92mm (11.06") |
Nominal Diameter | 279.4mm (11") |
Outside Diameter | 324.4mm (12.77") |
Type | Plain Cooling Fins |
UPC | 756632109917 |
Year Make Model | Trim | Engine |
---|---|---|
1959-1966 Chevrolet Bel Air | All Trims | All Engines |
1959-1966 Chevrolet Biscayne | All Trims | All Engines |
1966-1969 Chevrolet Caprice | All Trims | All Engines |
1963-1966 Chevrolet Corvette | All Trims | All Engines |
1958-1970 Chevrolet Impala | All Trims | All Engines |
1969-1970 Chevrolet Kingswood | All Trims | All Engines |
1969-1970 Chevrolet Townsman | All Trims | All Engines |
