Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 621-562 |

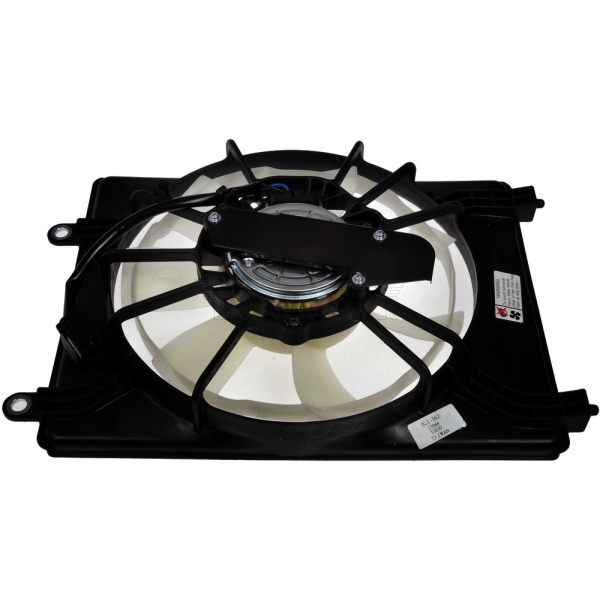

Part Description | Right A C Condenser Fan Assembly |
Blade Type | Forward Align Fin |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Type | Male |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 1 |
Fan 1 Diameter | 280 mm |
Fan 2 Blade Quantity | 0 |
Fan Blade Material | Plastic |
Fan Clutch Mounted | No |
Fan Quantity | 1 |
Fan Rotation | Counterclockwise |
Flat Side On Shaft | No |
Grade Type | Standard |
Housing Finish | None |
Mount Type | Brushed |
UPC | 885484853348 |
OE Part Number | 38619-5A2-A0, 38616-R4H-A01, 38611-R4H-A01, 38615-R4H-A01, AC3113120 |
Package Contents | Condenser Fan Assembly |
Package Quantity | 1 |
Packaging Type | Box |
Shaft Diameter | 5 mm |
Shaft Length | 5 mm |
Shroud Color | Black |
Shroud Included | Yes |
Shroud Material | Plastic |
Terminal Gender | Male |
Terminal Quantity | 2 |
Voltage | 13.6v |
Year Make Model | Trim | Engine |
---|---|---|
2016-2019 Acura ILX | All Trims | 4 Cyl 2.4L |
