Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 264-714 |

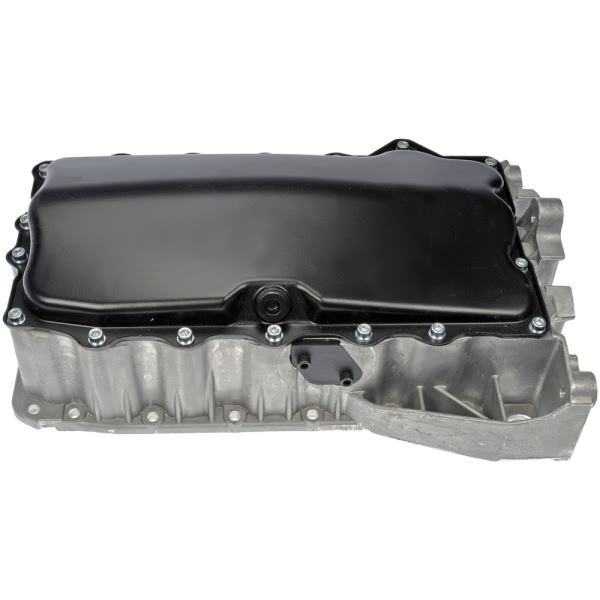

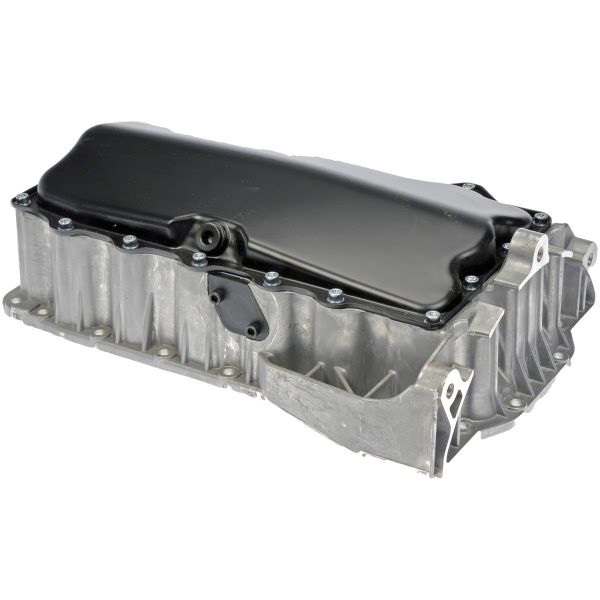

Part Description | OE Solutions Engine Oil Pan |
Baffled | No |
Bolt Hole Quantity | 20 |
Crank Shaft Wiper Included | No |
Dipstick Port | No |
Drain Plug Thread Size | M14x1.5 |
Engine Oil Cooler Return Fitting | No |
Finish | Black and Natural |
Gasket or Seal Included | No |
Installation Hardware Included | No |
Kicked Out | No |
Length | 17.52" |
Material | Steel and Aluminum |
UPC | 019495366126 |
OE Part Number | 06A103601AP |
Oil Pan Depth | 5.12" |
Pick Up Included | No |
Plug Included | Yes |
Sump Location | Front |
Sump Style | Wet |
Width | 11.42" |
Windage Tray Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2004 Seat Ibiza | All Trims | All Engines |
2005 Seat Ibiza | All Trims | 4 Cyl 1.8L |
2002-2005 Volkswagen Beetle | All Trims | 4 Cyl 1.8L |
2004-2010 Volkswagen Beetle | All Trims | 4 Cyl 2.0L |
2011-2012 Volkswagen Clasico | All Trims | 4 Cyl 1.8L |
2004-2007 Volkswagen Golf | All Trims | 4 Cyl 2.0L |
2002-2005 Volkswagen Jetta | All Trims | 4 Cyl 1.8L |
2002-2009 Volkswagen Jetta | All Trims | 4 Cyl 2.0L |
2010 Volkswagen Jetta | Clasico | 4 Cyl 2.0L |
