Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 264-500 |

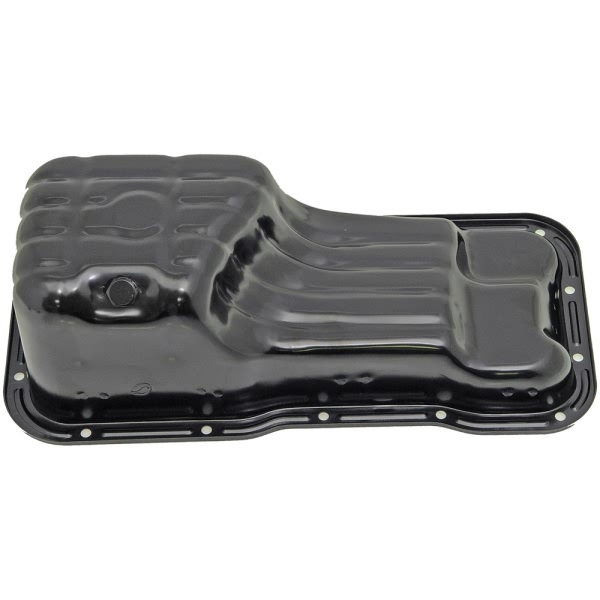

Part Description | OE Solutions Engine Oil Pan |
Baffled | Yes |
Bolt Hole Quantity | 14 |
Crank Shaft Wiper Included | No |
Dipstick Port | No |
Drain Plug Thread Size | M12x1.25 |
Engine Oil Cooler Return Fitting | No |
Finish | Black |
Gasket or Seal Included | No |
Installation Hardware Included | No |
Kicked Out | No |
Length | 16 mm |
Material | Steel |
UPC | 019495071433 |
OE Part Number | 111105M000, 11110-77A12 |
Oil Pan Depth | 6" |
Pick Up Included | No |
Plug Included | Yes |
Sump Location | Rear |
Sump Style | Wet |
Width | 8" |
Windage Tray Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1995-1998 Nissan 200SX | All Trims | 4 Cyl 1.6L |
2001-2005 Nissan Almera | All Trims | 4 Cyl 1.8L |
1996-2000 Nissan Lucino | All Trims | 4 Cyl 1.6L |
1991-1993 Nissan NX | All Trims | 4 Cyl 1.6L |
1989-1990 Nissan Pulsar NX | All Trims | 4 Cyl 1.6L |
1989-2000 Nissan Sentra | All Trims | 4 Cyl 1.6L |
2000-2006 Nissan Sentra | All Trims | 4 Cyl 1.8L |
1993-2004 Nissan Tsubame | All Trims | 4 Cyl 1.6L |
1990-2017 Nissan Tsuru | All Trims | 4 Cyl 1.6L |
1994-1995 Nissan Tsuru | All Trims | All Engines |
