Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 698-381 |

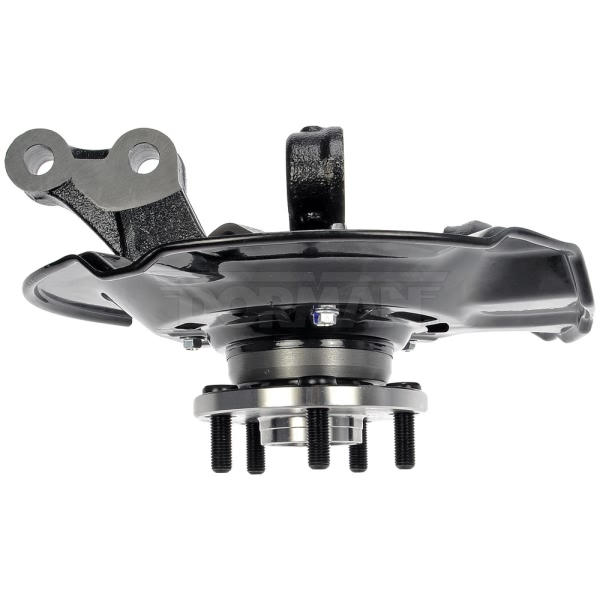

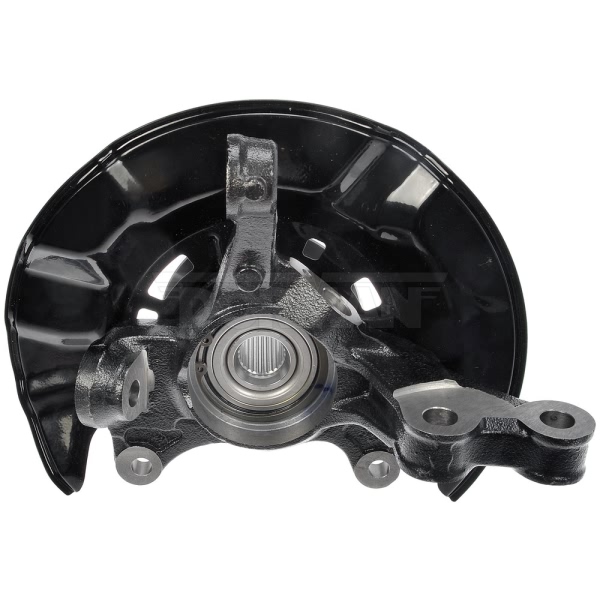

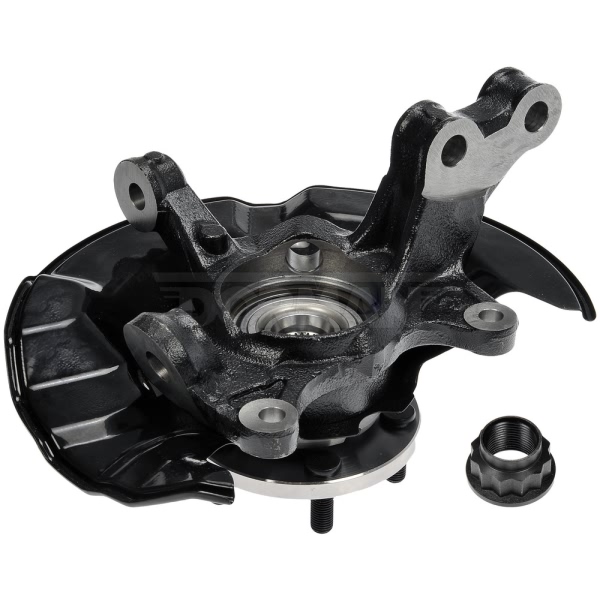

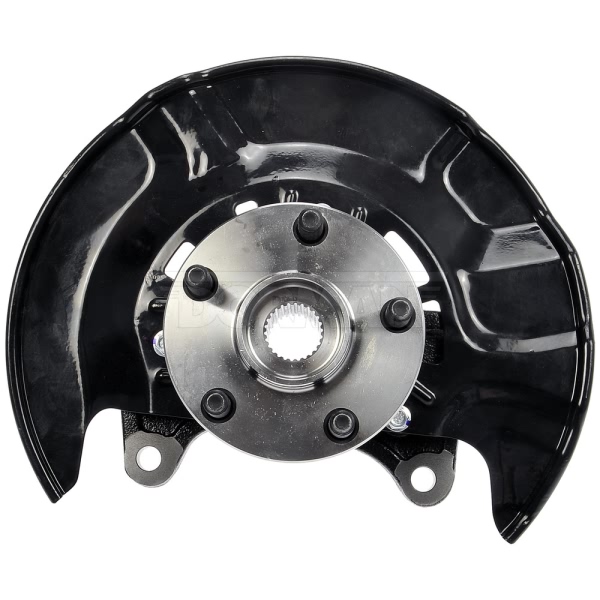

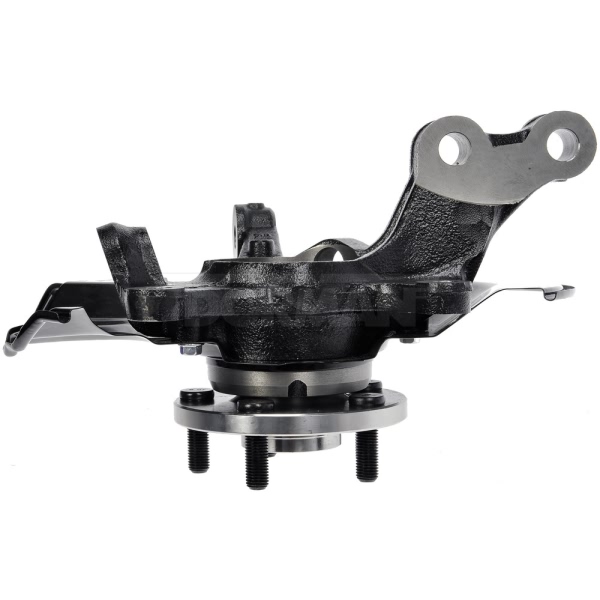

Part Description | OE Solutions Front Driver Side Steering Knuckle Kit |
Anti Lock Brake Sensor Included | No |
Anti Lock Braking System | Yes |
Anti Lock Braking System Type | Sensor |
Bolt Circle Diameter | 3.93" |
Brake Pilot Diameter | 2.16" |
Connector Quantity | 0 |
Finish | Black |
Flange Bolt Hole Diameter | 3.93" |
Flange Bolt Hole Quantity | 5 |
Flange Bolts Included | Yes |
Flange Diameter | 4.92" |
Flange Included | Yes |
Flange Offset | 1.57" |
Flange Shape | Circular |
Hub Pilot Diameter | 1.57" |
Material | Steel |

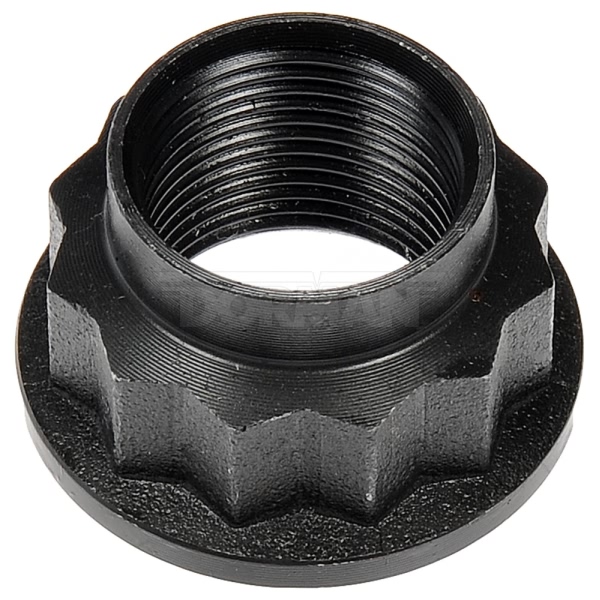

Package Contents | 1 Steering Knuckle, 1 Brake Dust Shield, 1 Hub Assembly, 1 Spindle Nut |
Spline Quantity | 26 |
UPC | 885484977938 |
Wheel Pilot Diameter | 2.12" |
Wheel Stud Quantity | 5 |
Wheel Stud Size | 10 mm |
Wheel Studs Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2009-2013 Toyota Corolla | All Trims | All Engines |
2009-2013 Toyota Matrix | All Trims | 4 Cyl 1.8L |
