Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 686-201 |

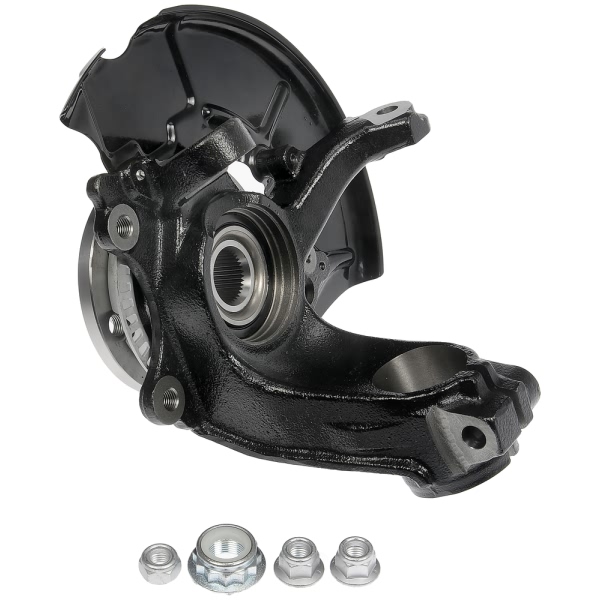

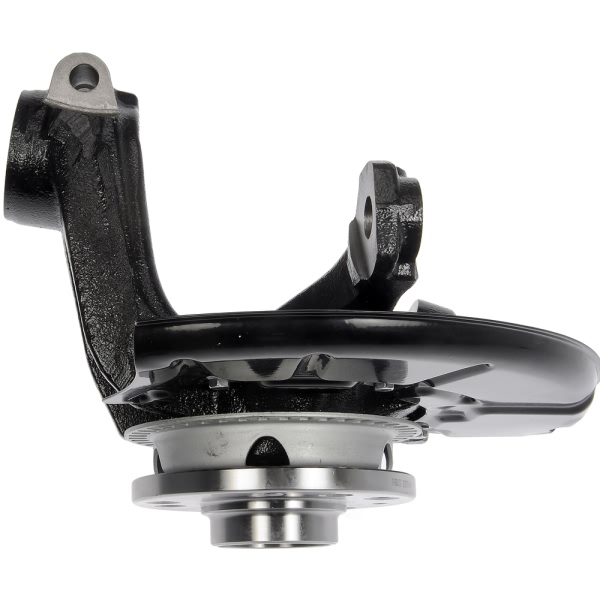

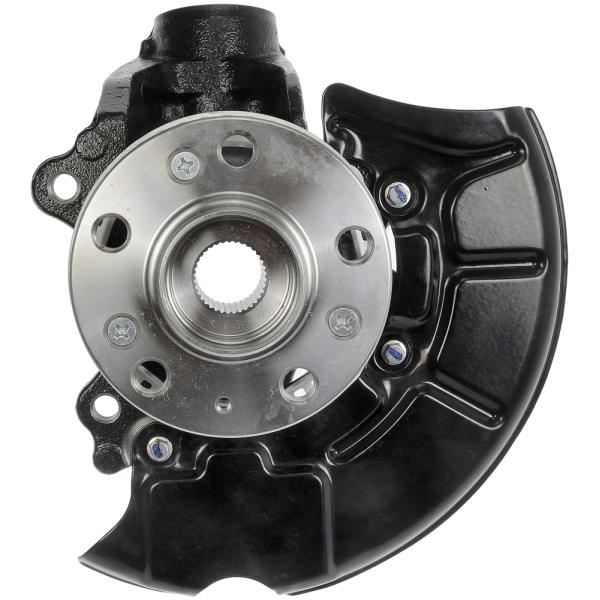

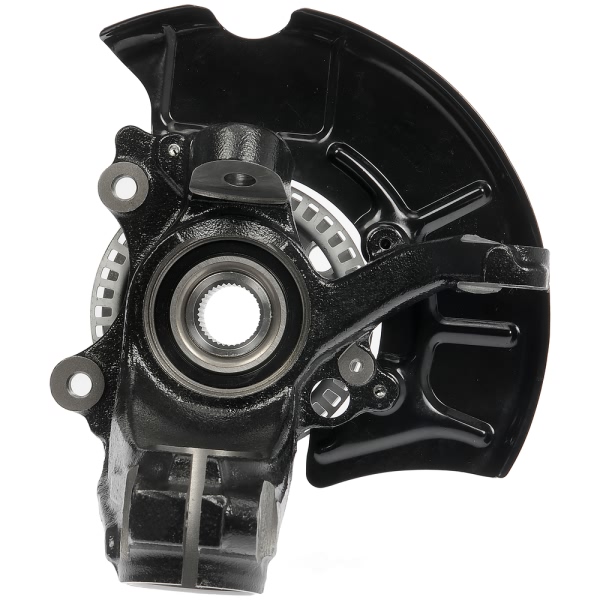

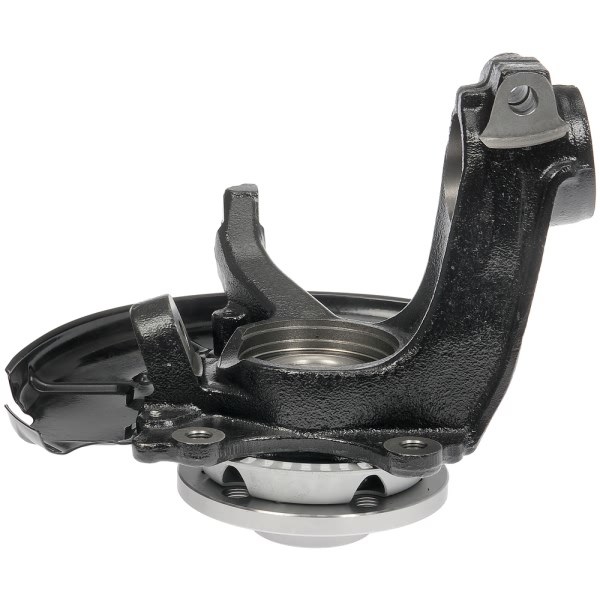

Part Description | OE Solutions Front Driver Side Wheel Bearing And Hub Assembly |
Anti Lock Brake Sensor Included | No |
Anti Lock Braking System | Yes |
Anti Lock Braking System Type | Sensor |
Bolt Circle Diameter | 100 mm |
Brake Pilot Diameter | 65 mm |
Flange Bolt Hole Diameter | 100 mm |
Flange Bolt Hole Quantity | 5 |
Flange Bolts Included | No |
Flange Diameter | 126 mm |
Flange Included | Yes |
Flange Offset | 44.7 mm |
Flange Shape | Circular |
Hub Pilot Diameter | 40 mm |
Package Contents | 1 load Knuckle |
Spline Quantity | 36 |
UPC | 889245539014 |
Wheel Pilot Diameter | 57 mm |
Wheel Stud Quantity | 5 |
Wheel Stud Size | M14-1.5 |
Wheel Studs Included | Yes |
Year Make Model | Trim | Engine |
---|---|---|
1999-2001 Volkswagen Beetle | All Trims | 4 Cyl 1.8L |
2002-2010 Volkswagen Beetle | All Trims | All Engines |
2010 Volkswagen Beetle Cabrio | All Trims | All Engines |
2000-2001 Volkswagen Golf | All Trims | 4 Cyl 1.8L |
2000-2001 Volkswagen Golf | All Trims | 6 Cyl 2.8L |
2002-2007 Volkswagen Golf | All Trims | All Engines |
1999-2001 Volkswagen Jetta | All Trims | 4 Cyl 1.8L |
1999-2001 Volkswagen Jetta | All Trims | 6 Cyl 2.8L |
2002-2005 Volkswagen Jetta | All Trims | All Engines |
