Check if it fits by entering your vehicle infoBrand | Dayco |
Part Number | 71531 |

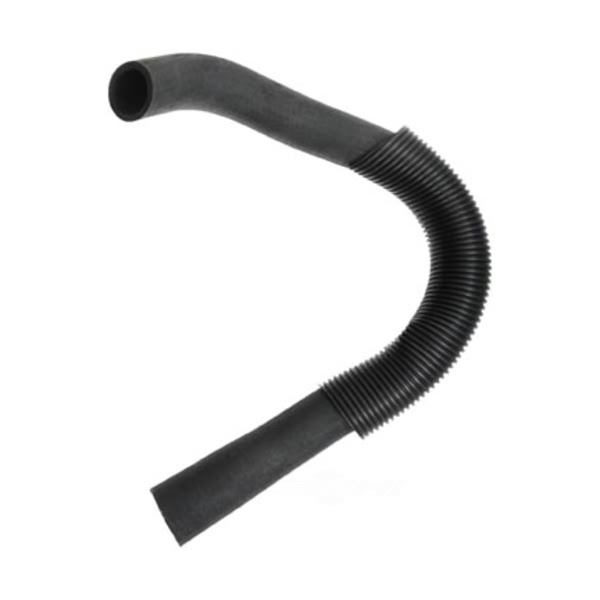

Part Description | Engine Coolant Curved Radiator Hose |
Color | Black |
Contains Heat Shield | N |
Contains Protective Sleeve | Y |
End 1 Inside Diameter | 1 1/4 |
End 2 Inside Diameter | 1 7/16 |
Hose Type | Dual I.D. Hose |
Material | EPDM |
UPC | 038244142514 |
OE Part Number | ZZL015186, F27A8B274TA, F29A8B274SA, F09A8B274BE, F09Z8260B, F07A8B274AC, F09A8B274BD, F19A8B274SA, F17A8B274LA, F0TZ8260B |
SAE Specification | SAE J20R4 Class D-1, SAE J1684 Type EC |
Trunk Height | 14 1/2 |
Year Make Model | Trim | Engine |
---|---|---|
1990-1995 Ford Aerostar | All Trims | 6 Cyl 4.0L |
1991-1994 Ford Explorer | All Trims | All Engines |
1990-1994 Ford Ranger | All Trims | 6 Cyl 4.0L |
1994 Mazda B4000 | All Trims | All Engines |
1991-1994 Mazda Navajo | All Trims | All Engines |
