Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3779 |

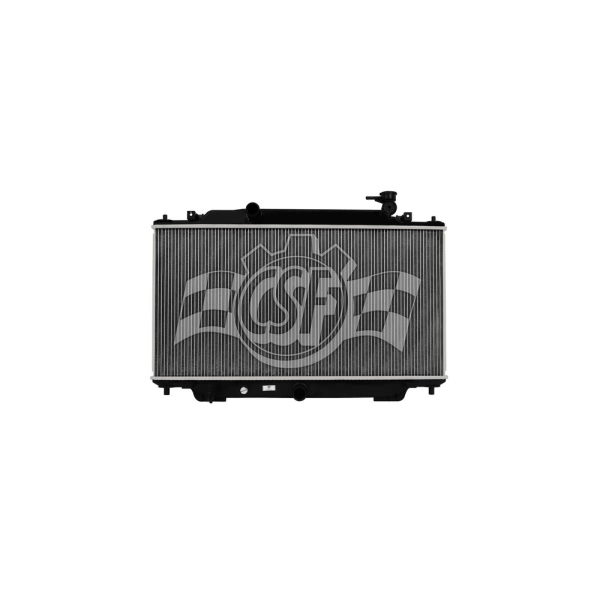

Part Description | Radiator |
Bottom Hose Fitting (in) | 1 5/16Centre |
Box Height (in) | 6 1/4 |
Box Length (in) | 31 5/8 |
Box Weight (lbs) | 9 |
Box Width (in) | 22 3/8 |
Core Length | 14 3/4 |
Core Material | Aluminum |
Core Thickness | 5/8 |
Core Width | 29 1/16 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4503 |
Hazardous Material | No |
Inlet Length (in) | 29 1/2 |
Inlet Width (in) | 1 |
No. Of Rows | 1 |
UPC | 710353037799 |
OE Part Number | 13404, PE18-15-20Y, PE20 15 200 |
Outlet Length(in) | 29 1/2 |
Outlet Width | 1 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 5/16 Left |
Year Make Model | Trim | Engine |
---|---|---|
2014-2018 Mazda 3 | All Trims | 4 Cyl 2.0L |
2014-2018 Mazda 3 | All Trims | 4 Cyl 2.5L |
2014 Mazda 3 Sport | All Trims | 4 Cyl 2.0L |
2014 Mazda 3 Sport | All Trims | 4 Cyl 2.5L |
