Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3730 |

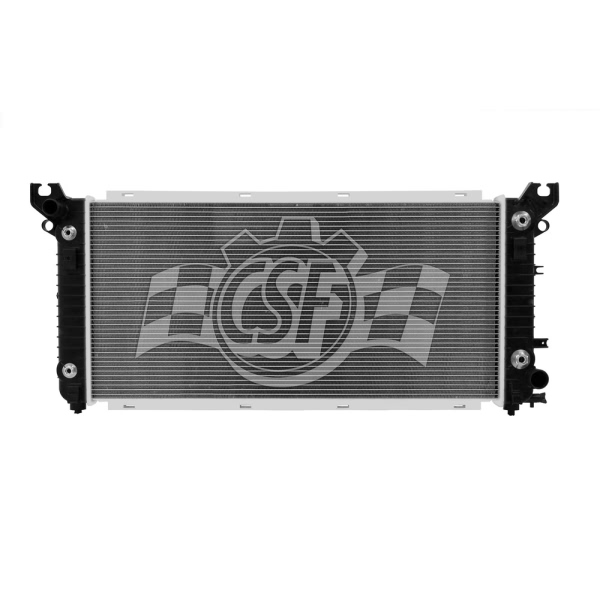

Part Description | Radiator |
Bottom Hose Fitting (in) | 1 9/16 Right |
Box Height (in) | 7 1/16 |
Box Length (in) | 44 5/8 |
Box Weight (lbs) | 20 |
Box Width (in) | 22 9/16 |
Core Length | 34 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 16 7/16 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 17 3/16 |
Inlet Width (in) | 1 15/16 |
No. Of Rows | 1 |
UPC | 710353037300 |
OE Part Number | 13398, 23126397, 23445967, 23126402 |
Oil Cooler (in) | 11 1/2 (high-efficiency Plate Type) ;11 1/2 (high-efficiency Plate Type) |
Outlet Length(in) | 17 3/16 |
Outlet Width | 2 7/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect oil cooler fittings. |
Top Hose Fitting (in) | 1 5/16 Left |
Year Make Model | Trim | Engine |
---|---|---|
2014-2015 Chevrolet Silverado 1500 | All Trims | 8 Cyl 5.3L |
2014-2015 Chevrolet Silverado 1500 | All Trims | 8 Cyl 6.2L |
2015-2017 Chevrolet Suburban | All Trims | 8 Cyl 5.3L |
2015-2017 Chevrolet Tahoe | All Trims | 8 Cyl 5.3L |
2015 GMC Sierra | All Trims | 8 Cyl 5.3L |
2015 GMC Sierra | All Trims | 8 Cyl 6.2L |
2014-2015 GMC Sierra 1500 | All Trims | 8 Cyl 5.3L |
2014-2015 GMC Sierra 1500 | All Trims | 8 Cyl 6.2L |
2016 GMC Yukon | All Trims | 8 Cyl 5.3L |
