Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3545 |

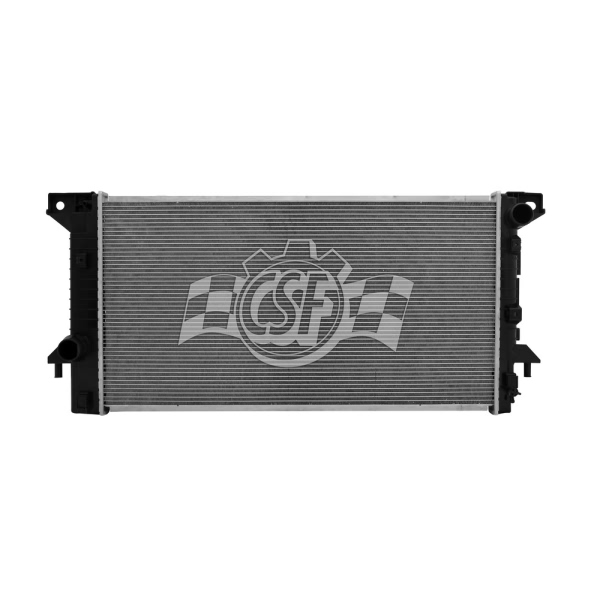

Part Description | Radiator |
Bottom Hose Fitting (in) | 1 7/8 Left |
Box Height (in) | 7 7/16 |
Box Length (in) | 41 11/16 |
Box Weight (lbs) | 14 |
Box Width (in) | 20 3/16 |
Core Length | 31 7/16 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 16 5/16 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 17 3/4 |
Inlet Width (in) | 2 1/16 |
No. Of Rows | 1 |
UPC | 710353035450 |
OE Part Number | 13045, 13046, 7L1Z 8005 A, 7L1Z 8005 B, CU13045, 8013045 |
Oil Cooler (in) | 12 (high-efficiency Plate Type) |
Outlet Length(in) | 17 3/4 |
Outlet Width | 2 1/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe. |
Top Hose Fitting (in) | 1 3/4 Right |
Year Make Model | Trim | Engine |
---|---|---|
2007-2008 Ford Expedition | All Trims | 8 Cyl 5.4L |
2007-2008 Lincoln Navigator | All Trims | 8 Cyl 5.4L |
