Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3459 |

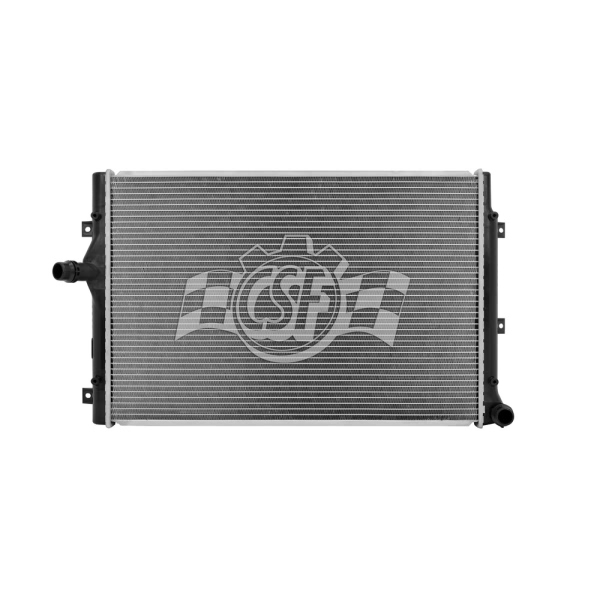

Part Description | Radiator |
Bottom Hose Fitting (in) | 1 1/4 Right |
Box Height (in) | 5 4/16 |
Box Length (in) | 32 13/16 |
Box Weight (lbs) | 10 |
Box Width (in) | 20 3/16 |
Core Length | 25 11/16 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 16 7/8 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 17 11/16 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353034590 |
OE Part Number | 1K0 121 251 DM, 2822, 1K0 121 251 N, 1K0 121 253 L, 1K0 121 251 BK, 1K0 121 251 AB, 8012822, 3CO 121 253 K, 3CO 121 253 Q, CU2822, 3CO 121 253 AL |
Outlet Length(in) | 17 11/16 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe. |
Top Hose Fitting (in) | 1 1/4 Left |
Year Make Model | Trim | Engine |
---|---|---|
2004-2008 Audi A3 | All Trims | 4 Cyl 2.0L |
2010-2013 Audi A3 | All Trims | 4 Cyl 2.0L |
2009-2013 Audi A3 Quattro | All Trims | 4 Cyl 2.0L |
2008-2014 Audi TT | All Trims | 4 Cyl 2.0L |
2013-2015 Volkswagen Beetle | TDI | 4 Cyl 2.0L |
2007-2008 Volkswagen Eos | All Trims | 4 Cyl 2.0L |
2010-2013 Volkswagen Golf | All Trims | 4 Cyl 2.0L |
2014 Volkswagen Golf | TDI | 4 Cyl 2.0L |
2007-2010 Volkswagen Golf City | All Trims | 4 Cyl 2.0L |
2006-2012 Volkswagen Jetta | All Trims | 4 Cyl 2.0L |
