Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3331 |

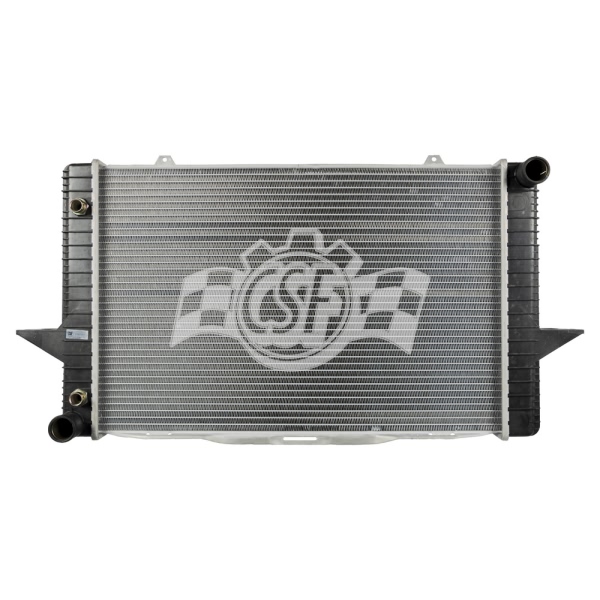

Part Description | Radiator |
Bottom Hose Fitting (in) | 1 3/8 Left |
Box Height (in) | 6 |
Box Length (in) | 35 |
Box Weight (lbs) | 12 |
Box Width (in) | 17 |
Core Length | 23 1/4 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 15 5/16 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 15 7/8 |
Inlet Width (in) | 1 13/16 |
No. Of Rows | 1 |
UPC | 710353033319 |
OE Part Number | 8601354, 8603822, 8603823, 8601353, 8012099, CU1871, 8012100 |
Oil Cooler (in) | 11 (high-efficiency Plate Type) |
Outlet Length(in) | 15 7/8 |
Outlet Width | 1 13/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect oil cooler fittings. |
Top Hose Fitting (in) | 1 3/8 Right |
Year Make Model | Trim | Engine |
---|---|---|
1993-1997 Volvo 850 | All Trims | 5 Cyl 2.4L |
1998 Volvo S70 | All Trims | 5 Cyl 2.4L |
1998 Volvo V70 | All Trims | 5 Cyl 2.4L |
