Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3113 |

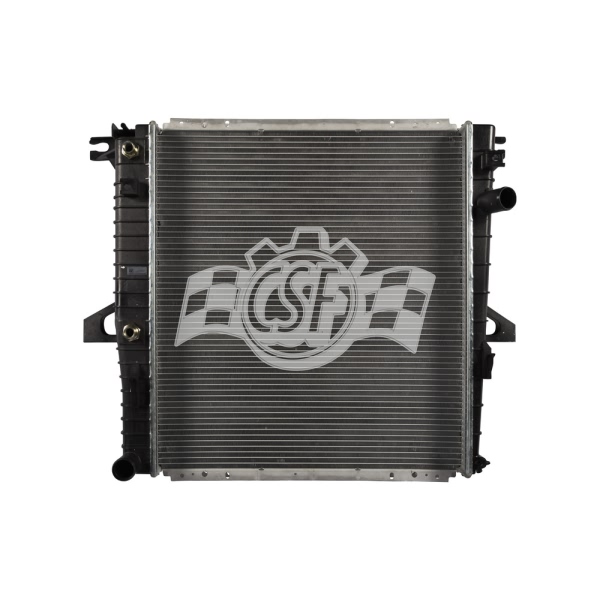

Part Description | Radiator |
Bottom Hose Fitting (in) | 1 1/2 Left |
Box Height (in) | 8 |
Box Length (in) | 32 |
Box Weight (lbs) | 17 |
Box Width (in) | 28 |
Core Length | 20 11/16 |
Core Material | Aluminum |
Core Thickness | 15/16 |
Core Width | 23 11/16 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 23 5/8 |
Inlet Width (in) | 2 3/4 |
No. Of Rows | 1 |
UPC | 710353031131 |
OE Part Number | 2470, 1L5H 8005 GA, 1L5Z 8005 HA, 1L5H 8005 HA, 6L5Z 8005 AA, 1L5Z 8005 GA, CU2470, 8012470, 6L5Z 8005 BA |
Oil Cooler (in) | 12 (high-efficiency Plate Type) |
Outlet Length(in) | 23 5/8 |
Outlet Width | 2 3/4 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M style plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 1/2 Right |
Year Make Model | Trim | Engine |
---|---|---|
2001-2011 Ford Ranger | All Trims | 4 Cyl 2.3L |
2001-2010 Mazda B2300 | All Trims | 4 Cyl 2.3L |
