Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3848 |

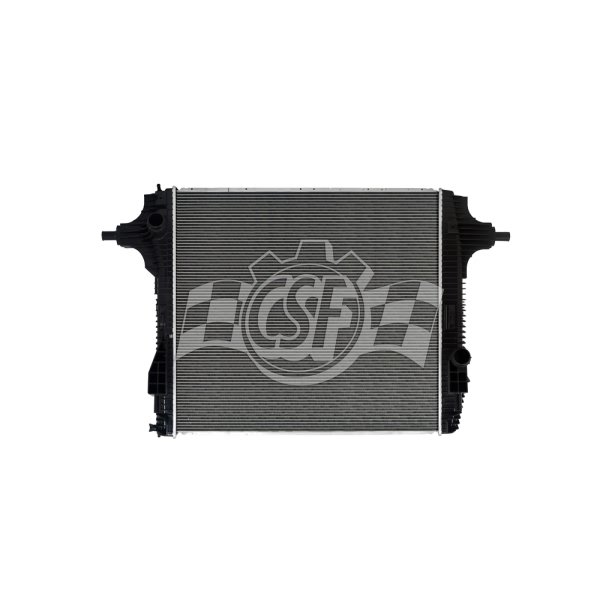

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 7/8 Right |
Box Height (in) | 10 |
Box Length (in) | 50 1/8 |
Box Weight (lbs) | 20 |
Box Width (in) | 32 3/16 |
Core Length | 30 3/8 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 27 11/16 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 28 3/8 |
Inlet Width (in) | 2 3/16 |
No. Of Rows | 1 |
UPC | 710353038482 |
OE Part Number | HC3Z8005C, FO3010356 |
Oil Cooler (in) | 12 (High-Efficiency Round Type) |
Outlet Length(in) | 28 3/8 |
Outlet Width | 2 3/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tank & Aluminum core with quick-connect inlet & outlet pipe & quick-connect oil cooler fittings. |
Top Hose Fitting (in) | 1 7/8 Left |
Year Make Model | Trim | Engine |
---|---|---|
2017-2019 Ford F-250 Super Duty | All Trims | 8 Cyl 6.2L |
2017-2019 Ford F-350 Super Duty | All Trims | 8 Cyl 6.2L |
