Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3846 |

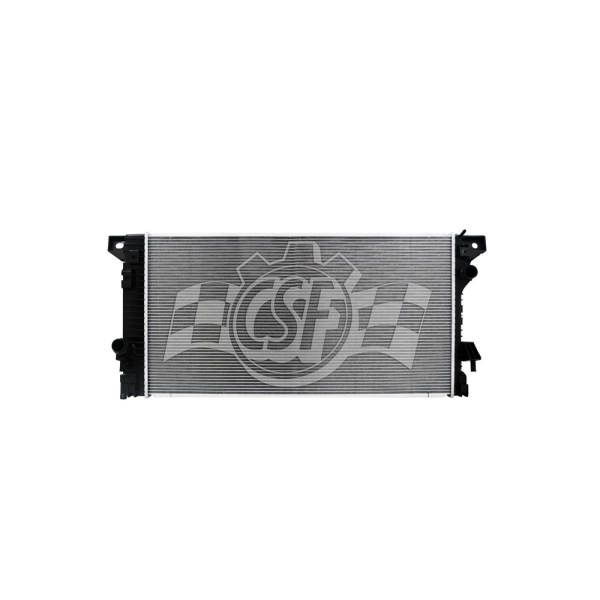

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/2 Left |
Box Height (in) | 8 7/16 |
Box Length (in) | 45 3/16 |
Box Weight (lbs) | 17 |
Box Width (in) | 21 3/4 |
Core Length | 34 3/4 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 17 11/16 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 18 3/8 |
Inlet Width (in) | 1 1/2 |
No. Of Rows | 1 |
Outlet Length(in) | 18 3/8 |
Outlet Width | 2 5/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core with quick-connect outlet pipe. |
Top Hose Fitting (in) | 1 1/2 Right |
UPC | 710353038468 |
Year Make Model | Trim | Engine |
---|---|---|
2018-2020 Ford Expedition | All Trims | 6 Cyl 3.5L |
2015-2019 Ford F-150 | All Trims | 8 Cyl 5.0L |
2017-2019 Ford F-150 | All Trims | 6 Cyl 3.5L |
2018-2019 Ford F-150 | All Trims | 6 Cyl 3.3L |
2018-2020 Lincoln Navigator | All Trims | 6 Cyl 3.5L |
