Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3845 |

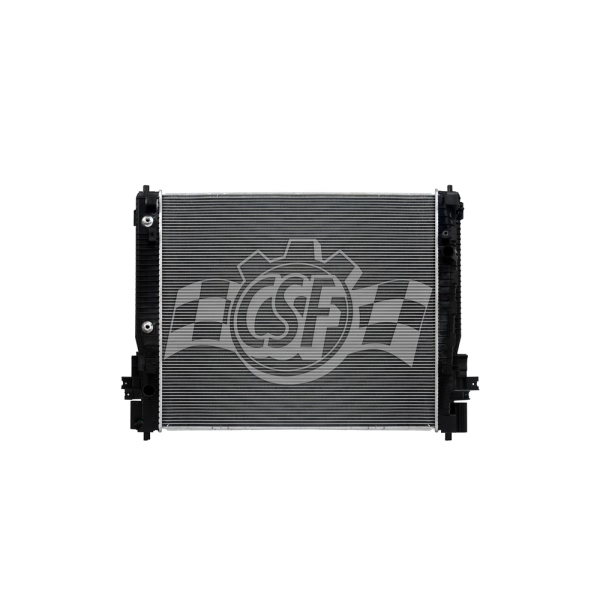

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 5/16 Left |
Box Height (in) | 7 1/4 |
Box Length (in) | 40 11/16 |
Box Weight (lbs) | 19 |
Box Width (in) | 31 5/8 |
Core Length | 30 3/4 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 25 11/16 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 26 7/16 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353038451 |
OE Part Number | 84274378, 84274379, GM3010613, 84569929, 84569928 |
Oil Cooler (in) | 11 13/16 Left & Right (high-effeciency Plate Type) |
Outlet Length(in) | 26 7/16 |
Outlet Width | 1 15/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core with quick-connect oil cooler fittings. |
Top Hose Fitting (in) | 1 5/16 Right |
Year Make Model | Trim | Engine |
---|---|---|
2018-2020 Buick Enclave | All Trims | 6 Cyl 3.6L |
2018-2020 Chevrolet Traverse | All Trims | 6 Cyl 3.6L |
