Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3817 |

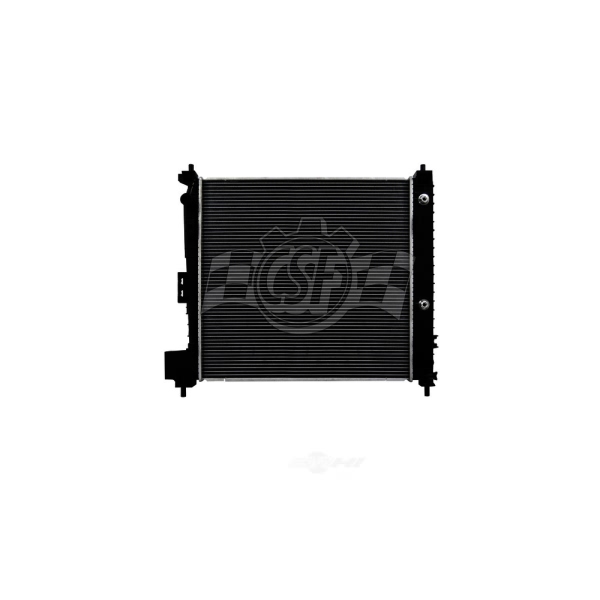

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/8 Right |
Core Length | 23 1/2 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 22 3/8 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 22 3/4 |
Inlet Width (in) | 1 1/2 |
No. Of Rows | 1 |
Oil Cooler (in) | 11 13/16 (high-efficiency Plate Type) |
Outlet Length(in) | 22 3/4 |
Outlet Width | 2 1/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect oil cooler fittings. |
Top Hose Fitting (in) | 1 3/8 Left |
UPC | 710353038178 |
Year Make Model | Trim | Engine |
---|---|---|
2017-2020 Cadillac XT5 | All Trims | 6 Cyl 3.6L |
2019 Chevrolet Blazer | All Trims | 4 Cyl 2.5L |
2019 Chevrolet Blazer | All Trims | 6 Cyl 3.6L |
2017-2019 GMC Acadia | All Trims | 4 Cyl 2.5L |
2017-2019 GMC Acadia | All Trims | 6 Cyl 3.6L |
