Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3807 |

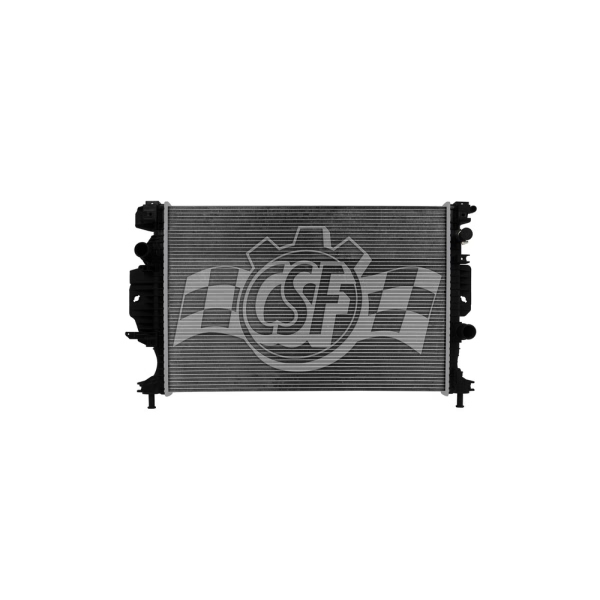

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/8 Right |
Box Height (in) | 6 1/16 |
Box Length (in) | 35 |
Box Weight (lbs) | 10 |
Box Width (in) | 21 3/4 |
Core Length | 26 7/16 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 17 11/16 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 18 1/8 |
Inlet Width (in) | 1 5/16 |
No. Of Rows | 1 |
UPC | 710353038079 |
OE Part Number | 13320, 13321, DG9Z 8005D, DG9Z 8005C, 13322, DG9Z 8005B |
Outlet Length(in) | 18 1/8 |
Outlet Width | 1 5/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 3/8 Left |
Year Make Model | Trim | Engine |
---|---|---|
2013-2014 Ford Fusion | All Trims | 4 Cyl 1.6L |
2013-2020 Ford Fusion | All Trims | 4 Cyl 2.0L |
2013-2020 Ford Fusion | All Trims | 4 Cyl 2.5L |
2014-2020 Ford Fusion | All Trims | 4 Cyl 1.5L |
2019-2020 Ford Police Responder Hybrid | All Trims | 4 Cyl 2.0L |
2013-2020 Lincoln MKZ | All Trims | 4 Cyl 2.0L |
