Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3798 |

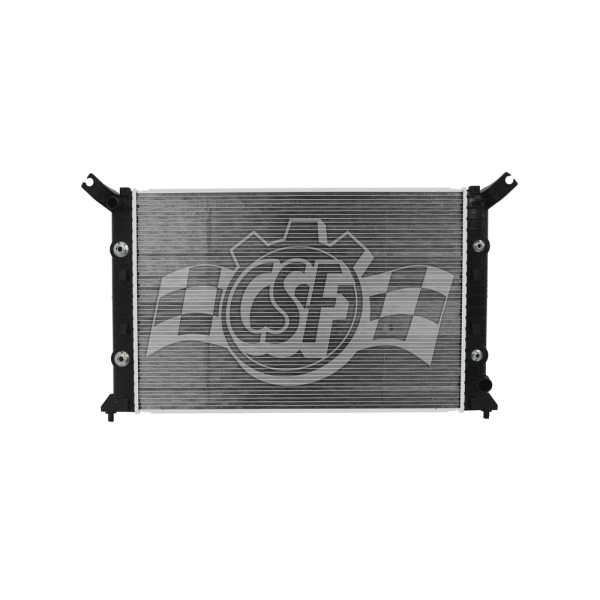

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 9/16 Right |
Box Height (in) | 5 7/8 |
Box Length (in) | 46 |
Box Weight (lbs) | 21 |
Box Width (in) | 28 11/16 |
Core Length | 34 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 22 3/4 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 23 1/4 |
Inlet Width (in) | 1 7/8 |
No. Of Rows | 1 |
UPC | 710353037980 |
OE Part Number | 13301, 23378650, 23447657, 25838891, 22903587, 8013301, 22900479, CU13301 |
Oil Cooler (in) | 11 1/2 (high-efficiency Plate Type) ;11 1/2 (high-efficiency Plate Type) |
Outlet Length(in) | 23 1/4 |
Outlet Width | 1 7/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe & quick-connect oil cooler fittings. |
Top Hose Fitting (in) | 1 1/4 Left |
Year Make Model | Trim | Engine |
---|---|---|
2011-2019 Chevrolet Silverado 2500 HD | All Trims | 8 Cyl 6.0L |
2011-2019 Chevrolet Silverado 3500 HD | All Trims | 8 Cyl 6.0L |
2011-2019 GMC Sierra 2500 HD | All Trims | 8 Cyl 6.0L |
2011-2019 GMC Sierra 3500 HD | All Trims | 8 Cyl 6.0L |
