Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3773 |

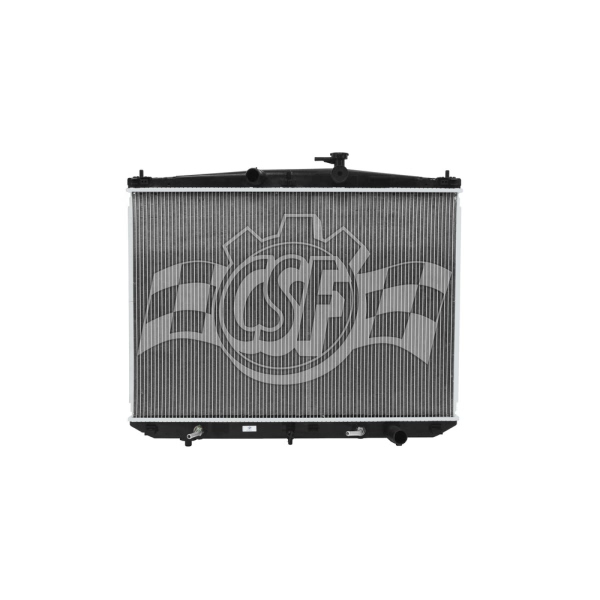

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 5/16 Right |
Box Height (in) | 6 7/16 |
Box Length (in) | 32 1/4 |
Box Weight (lbs) | 12 |
Box Width (in) | 28 1/4 |
Core Length | 20 5/8 |
Core Material | Aluminum |
Core Thickness | 5/8 |
Core Width | 29 11/16 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4514 |
Hazardous Material | No |
Inlet Length (in) | 30 3/16 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353037737 |
OE Part Number | 13450, 13449, 16400 0P410, 16400 0P420 |
Oil Cooler (in) | 14 3/4 (high-efficiency Plate Type) |
Outlet Length(in) | 30 3/16 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 5/16 Left |
Year Make Model | Trim | Engine |
---|---|---|
2014-2019 Toyota Highlander | All Trims | 4 Cyl 2.7L |
2014-2019 Toyota Highlander | All Trims | 6 Cyl 3.5L |
