Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3758 |

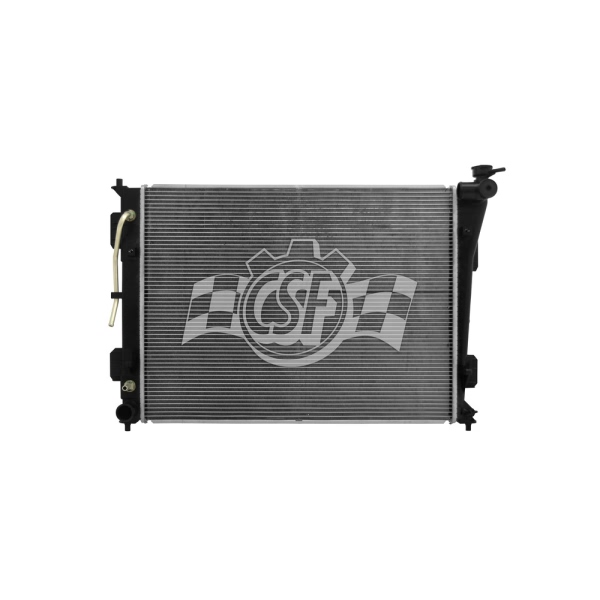

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/8 Left |
Box Height (in) | 7 1/4 |
Box Length (in) | 33 |
Box Weight (lbs) | 10 |
Box Width (in) | 23 9/16 |
Core Length | 25 1/16 |
Core Material | Aluminum |
Core Thickness | 5/8 |
Core Width | 18 15/16 |
Cross-flow/ Down-flow | Cross Flow |
Csf Cap Number | 4503 |
Hazardous Material | No |
Inlet Length (in) | 19 |
Inlet Width (in) | 1 9/16 |
No. Of Rows | 1 |
UPC | 710353037584 |
OE Part Number | 25310-3R501, 13191, CU13191, 8013191 |
Oil Cooler (in) | 13 3/4 (high-effeciency Concentric Type) |
Outlet Length(in) | 19 |
Outlet Width | 1 9/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 3/8 Right |
Year Make Model | Trim | Engine |
---|---|---|
2015-2017 Hyundai Azera | All Trims | 6 Cyl 3.3L |
2014 Hyundai Sonata | All Trims | 4 Cyl 2.4L |
