Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3738 |

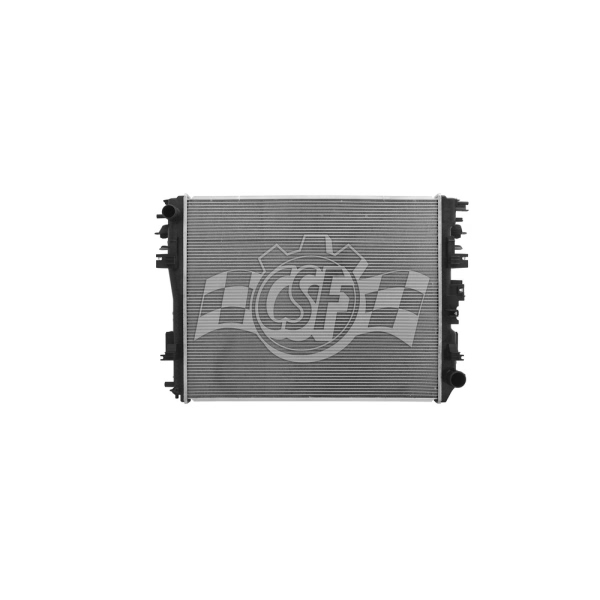

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/4 Right |
Box Height (in) | 8 1/16 |
Box Length (in) | 38 3/4 |
Box Weight (lbs) | 16 |
Box Width (in) | 25 11/16 |
Core Length | 27 1/2 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 21 11/16 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 22 11/16 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353037386 |
OE Part Number | 68232742AA, 68232742AB, 13493 |
Outlet Length(in) | 22 11/16 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 1/2 Left |
Year Make Model | Trim | Engine |
---|---|---|
2014-2018 Ram 1500 | All Trims | 6 Cyl 3.0L |
2019 Ram 1500 Classic | All Trims | 6 Cyl 3.0L |
2014-2018 Ram 2500 | All Trims | 8 Cyl 6.4L |
2014-2018 Ram 3500 | All Trims | 8 Cyl 6.4L |
