Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3716 |

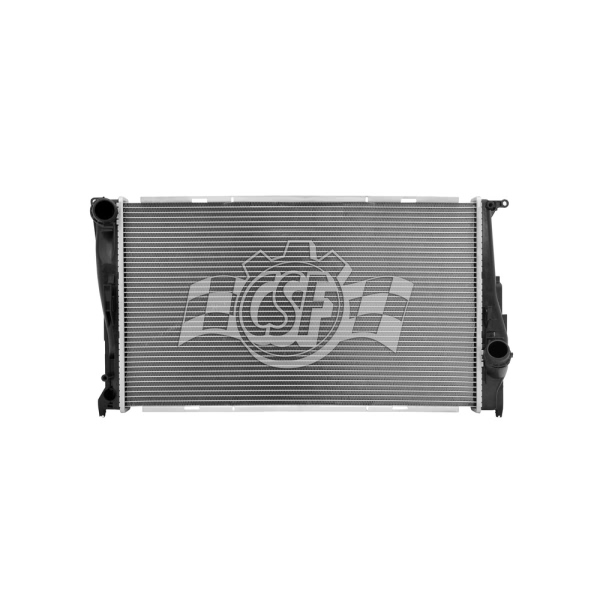

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/2 Right |
Box Height (in) | 5 7/8 |
Box Length (in) | 29 7/16 |
Box Weight (lbs) | 8 |
Box Width (in) | 17 1/16 |
Core Length | 23 5/8 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 13 5/8 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 14 1/8 |
Inlet Width (in) | 1 13/16 |
No. Of Rows | 1 |
UPC | 710353037164 |
OE Part Number | CU2973, 2973, 17 11 7 558 480 |
Outlet Length(in) | 14 1/8 |
Outlet Width | 1 13/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe;Supplied with Cooling Circuit "Control Sleeve". |
Top Hose Fitting (in) | 1 1/2 Left |
Year Make Model | Trim | Engine |
---|---|---|
2011 BMW 1 Series M | All Trims | 6 Cyl 3.0L |
2008-2013 BMW 135i | All Trims | 6 Cyl 3.0L |
2013 BMW 135is | All Trims | 6 Cyl 3.0L |
2007-2013 BMW 335i | All Trims | 6 Cyl 3.0L |
2009-2013 BMW 335i xDrive | All Trims | 6 Cyl 3.0L |
2011-2013 BMW 335is | All Trims | 6 Cyl 3.0L |
2007-2008 BMW 335xi | All Trims | 6 Cyl 3.0L |
2009 BMW Z4 | All Trims | 6 Cyl 3.2L |
2009-2016 BMW Z4 | sDrive35i | 6 Cyl 3.0L |
2011-2012 BMW Z4 | All Trims | 6 Cyl 3.0L |
