Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3710 |

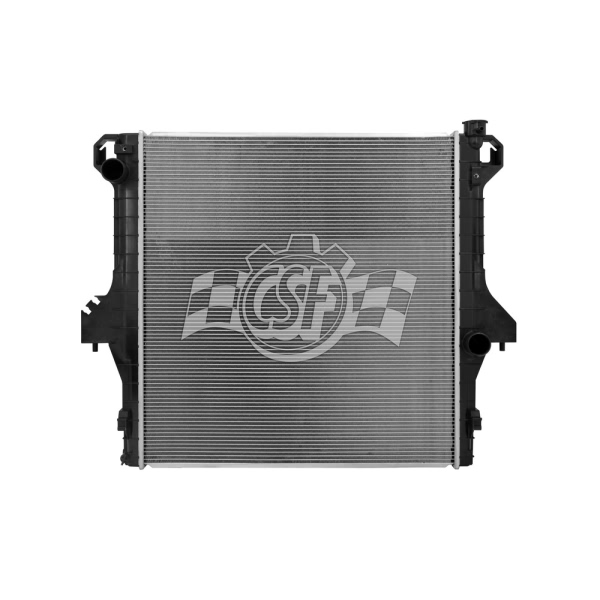

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 2 Right |
Box Height (in) | 8 1/16 |
Box Length (in) | 40 1/8 |
Box Weight (lbs) | 22 |
Box Width (in) | 33 9/16 |
Core Length | 26 15/16 |
Core Material | Aluminum |
Core Thickness | 1 5/8 |
Core Width | 28 9/16 |
Cross-flow/ Down-flow | Cross Flow |
Csf Cap Number | 4515 |
Hazardous Material | No |
Inlet Length (in) | 29 1/4 |
Inlet Width (in) | 2 7/16 |
No. Of Rows | 2 |
UPC | 710353037102 |
OE Part Number | 52028900 AD, 2711, CU2711, 13094 |
Outlet Length(in) | 29 1/4 |
Outlet Width | 2 7/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 2 Left |
Year Make Model | Trim | Engine |
---|---|---|
2004-2008 Dodge Ram 2500 | All Trims | 6 Cyl 5.9L |
2007-2009 Dodge Ram 2500 | All Trims | 6 Cyl 6.7L |
2004-2007 Dodge Ram 3500 | All Trims | 6 Cyl 5.9L |
2007-2009 Dodge Ram 3500 | All Trims | 6 Cyl 6.7L |
