Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3693 |

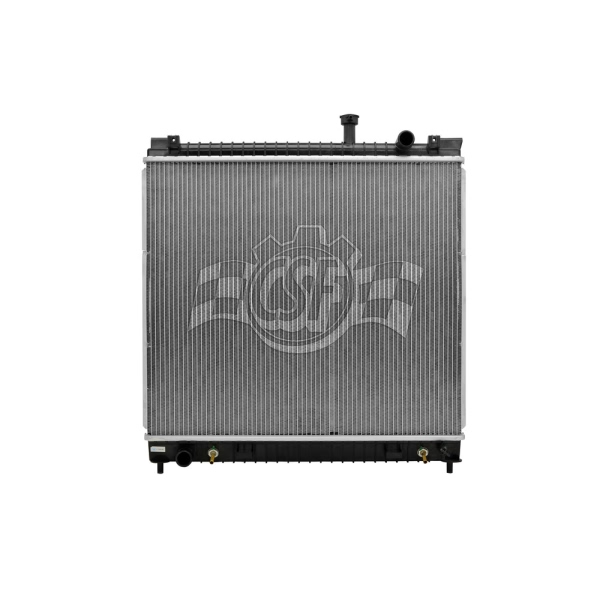

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/8 Left |
Box Height (in) | 7 4/16 |
Box Length (in) | 30 1/16 |
Box Weight (lbs) | 17 |
Box Width (in) | 33 3/8 |
Core Length | 23 7/16 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 27 1/16 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4502 |
Hazardous Material | No |
Inlet Length (in) | 26 15/16 |
Inlet Width (in) | 2 5/8 |
No. Of Rows | 1 |
UPC | 710353036938 |
OE Part Number | 2691, 21460-ZZ90A, 21460-ZC00B, 21460-ZC00A, CU2691, 8012691, 21460-7S000, 21460-9FD0B, 21460-9FB1B, 21460-9FD0A |
Oil Cooler (in) | 18 1/8 (high-effeciency Concentric Type) |
Outlet Length(in) | 26 15/16 |
Outlet Width | 2 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 3/8 Right |
Year Make Model | Trim | Engine |
---|---|---|
2004-2010 Infiniti QX56 | All Trims | 8 Cyl 5.6L |
2005-2015 Nissan Armada | All Trims | 8 Cyl 5.6L |
2004 Nissan Pathfinder Armada | All Trims | 8 Cyl 5.6L |
2004-2015 Nissan Titan | All Trims | 8 Cyl 5.6L |
