Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3692 |

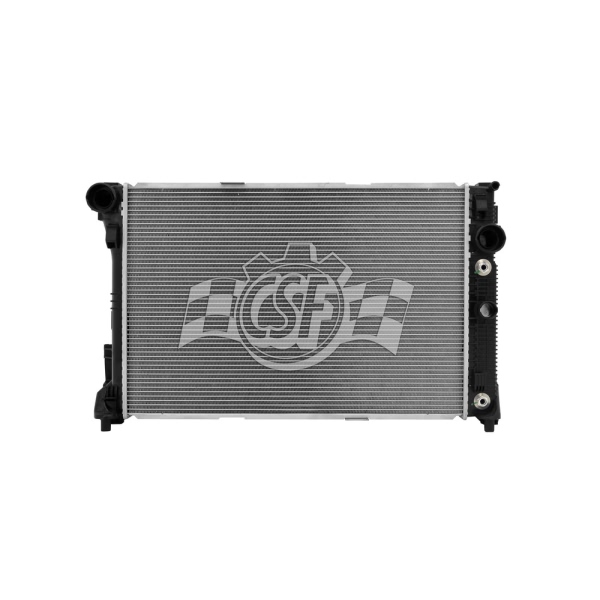

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 13/16 Right |
Box Height (in) | 6 4/16 |
Box Length (in) | 32 7/16 |
Box Weight (lbs) | 13 |
Box Width (in) | 21 |
Core Length | 25 3/16 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 17 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 17 7/16 |
Inlet Width (in) | 2 1/16 |
No. Of Rows | 1 |
UPC | 710353036921 |
OE Part Number | 2045003603 |
Oil Cooler (in) | 10 1/16 (high-efficiency Plate Type) |
Outlet Length(in) | 17 7/16 |
Outlet Width | 2 1/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe & quick-connect oil cooler fittings. |
Top Hose Fitting (in) | 1 13/16 Left |
Year Make Model | Trim | Engine |
---|---|---|
2013-2014 Mercedes-Benz C300 | All Trims | 6 Cyl 3.5L |
2012-2014 Mercedes-Benz C350 | All Trims | 6 Cyl 3.5L |
2012-2014 Mercedes-Benz CLS550 | All Trims | 8 Cyl 4.7L |
2012-2013 Mercedes-Benz E300 | All Trims | 6 Cyl 3.5L |
2010-2014 Mercedes-Benz E350 | All Trims | 6 Cyl 3.5L |
2012-2013 Mercedes-Benz E350 | Bluetec | 6 Cyl 3.0L |
2016 Mercedes-Benz E350 | All Trims | 6 Cyl 3.5L |
2011 Mercedes-Benz E550 | All Trims | 8 Cyl 5.5L |
2012-2014 Mercedes-Benz E550 | All Trims | 8 Cyl 4.7L |
