Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3689 |

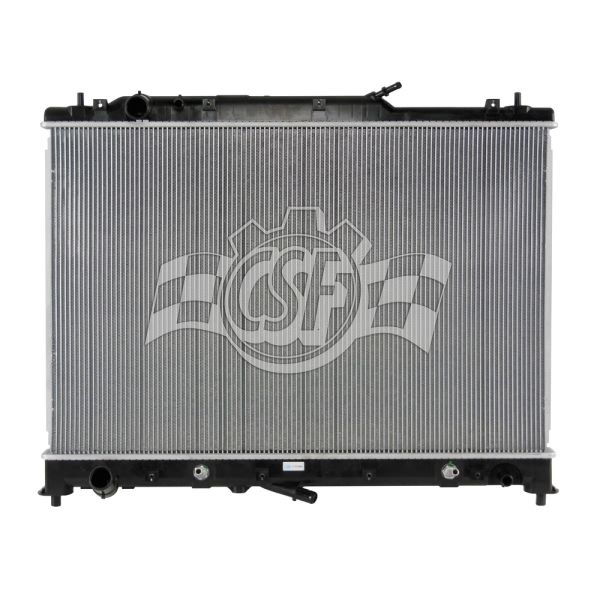

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/8 Left |
Box Height (in) | 5 1/16 |
Box Length (in) | 32 13/16 |
Box Weight (lbs) | 12 |
Box Width (in) | 27 1/2 |
Core Length | 19 3/4 |
Core Material | Aluminum |
Core Thickness | 7/8 |
Core Width | 29 7/16 |
Cross-flow/ Down-flow | Down Flow |
Hazardous Material | No |
Inlet Length (in) | 30 3/16 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353036891 |
OE Part Number | 2986, CY03 15 200F, CU2986 |
Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
Outlet Length(in) | 30 3/16 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
Top Hose Fitting (in) | 1 3/8 Left |
Year Make Model | Trim | Engine |
---|---|---|
2007 Mazda CX-9 | All Trims | 6 Cyl 3.5L |
2008-2015 Mazda CX-9 | All Trims | 6 Cyl 3.7L |
