Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3675 |

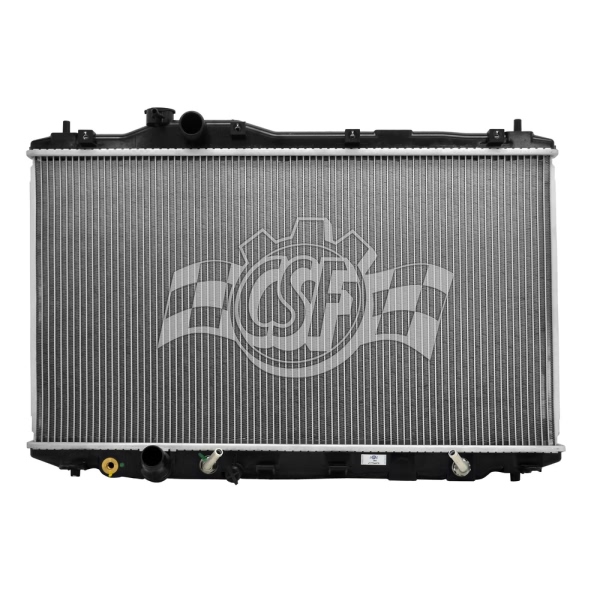

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/4 Left |
Box Height (in) | 5 11/16 |
Box Length (in) | 29 1/4 |
Box Weight (lbs) | 8 |
Box Width (in) | 20 13/16 |
Core Length | 14 3/4 |
Core Material | Aluminum |
Core Thickness | 5/8 |
Core Width | 26 11/16 |
Cross-flow/ Down-flow | Down Flow |
Csf Cap Number | 4514 |
Hazardous Material | No |
Inlet Length (in) | 27 3/16 |
Inlet Width (in) | 1 |
No. Of Rows | 1 |
UPC | 710353036754 |
OE Part Number | 13354, 19010-RW0-A61 |
Oil Cooler (in) | 12 13/16 (high-effeciency Concentric Type) |
Outlet Length(in) | 27 3/16 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe. |
Top Hose Fitting (in) | 1 1/4 Left |
Year Make Model | Trim | Engine |
---|---|---|
2014-2015 Acura ILX | Hybrid | 4 Cyl 1.5L |
2013-2015 Honda Civic | Hybrid | 4 Cyl 1.5L |
