Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3673 |

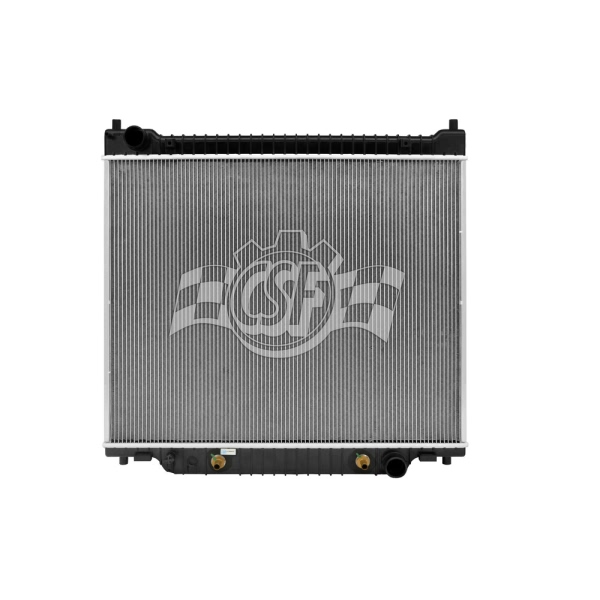

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 3/4 Right |
Box Height (in) | 6 4/16 |
Box Length (in) | 32 13/16 |
Box Weight (lbs) | 20 |
Box Width (in) | 32 5/8 |
Core Length | 23 5/8 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 29 3/8 |
Cross-flow/ Down-flow | Down Flow |
Hazardous Material | No |
Inlet Length (in) | 30 1/8 |
Inlet Width (in) | 2 13/16 |
No. Of Rows | 1 |
UPC | 710353036730 |
OE Part Number | 13083, 8011995, 8012977, 2977, 9C2Z 8005B, 9C2Z 8005C |
Oil Cooler (in) | 12 (high-efficiency Plate Type) |
Outlet Length(in) | 30 1/8 |
Outlet Width | 2 13/16 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect oil cooler fittings. |
Top Hose Fitting (in) | 1 3/4 Left |
Year Make Model | Trim | Engine |
---|---|---|
2007-2014 Ford E-150 | All Trims | 8 Cyl 5.4L |
2007-2014 Ford E-250 | All Trims | 8 Cyl 5.4L |
2008-2014 Ford E-350 Super Duty | All Trims | 10 Cyl 6.8L |
2008-2014 Ford E-350 Super Duty | All Trims | 8 Cyl 5.4L |
