Vehicle Specific
Check if it fits by entering your vehicle infoBrand | CSF |
Part Number | 3646 |

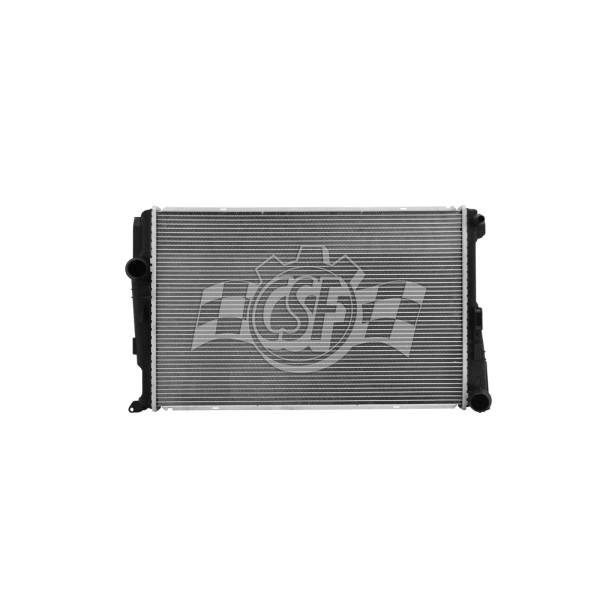

Part Description | Engine Coolant Radiator |
Bottom Hose Fitting (in) | 1 1/2 Right |
Box Height (in) | 5 14/16 |
Box Length (in) | 29 7/16 |
Box Weight (lbs) | 9 |
Box Width (in) | 18 5/8 |
Core Length | 23 5/8 |
Core Material | Aluminum |
Core Thickness | 1 1/4 |
Core Width | 15 5/16 |
Cross-flow/ Down-flow | Cross Flow |
Hazardous Material | No |
Inlet Length (in) | 15 13/16 |
Inlet Width (in) | 1 5/8 |
No. Of Rows | 1 |
UPC | 710353036464 |
OE Part Number | 13534, 17118623369, 17117823568 |
Outlet Length(in) | 15 13/16 |
Outlet Width | 1 5/8 |
Radiator Cap Supplied | No |
Tank Material | Plastic |
Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe. |
Top Hose Fitting (in) | 1 1/2 Left |
Year Make Model | Trim | Engine |
---|---|---|
2011-2017 BMW X3 | xDrive35i | 6 Cyl 3.0L |
2012-2017 BMW X3 | xDrive35i M Sport | 6 Cyl 3.0L |
2013 BMW X3 | xDrive28i M Sport | 6 Cyl 3.0L |
2013-2014 BMW X3 | xDrive28i | 6 Cyl 3.0L |
2013-2017 BMW X3 | xDrive28i | 4 Cyl 2.0L |
2014 BMW X3 | xDrive28i M Sport | 4 Cyl 2.0L |
2014 BMW X3 | xDrive28i Top Line | 4 Cyl 2.0L |
2014 BMW X3 | xDrive35i Top Line | 6 Cyl 3.0L |
2015-2016 BMW X3 | xDrive35i X Line | 6 Cyl 3.0L |
2015-2017 BMW X3 | xDrive28d | 4 Cyl 2.0L |
